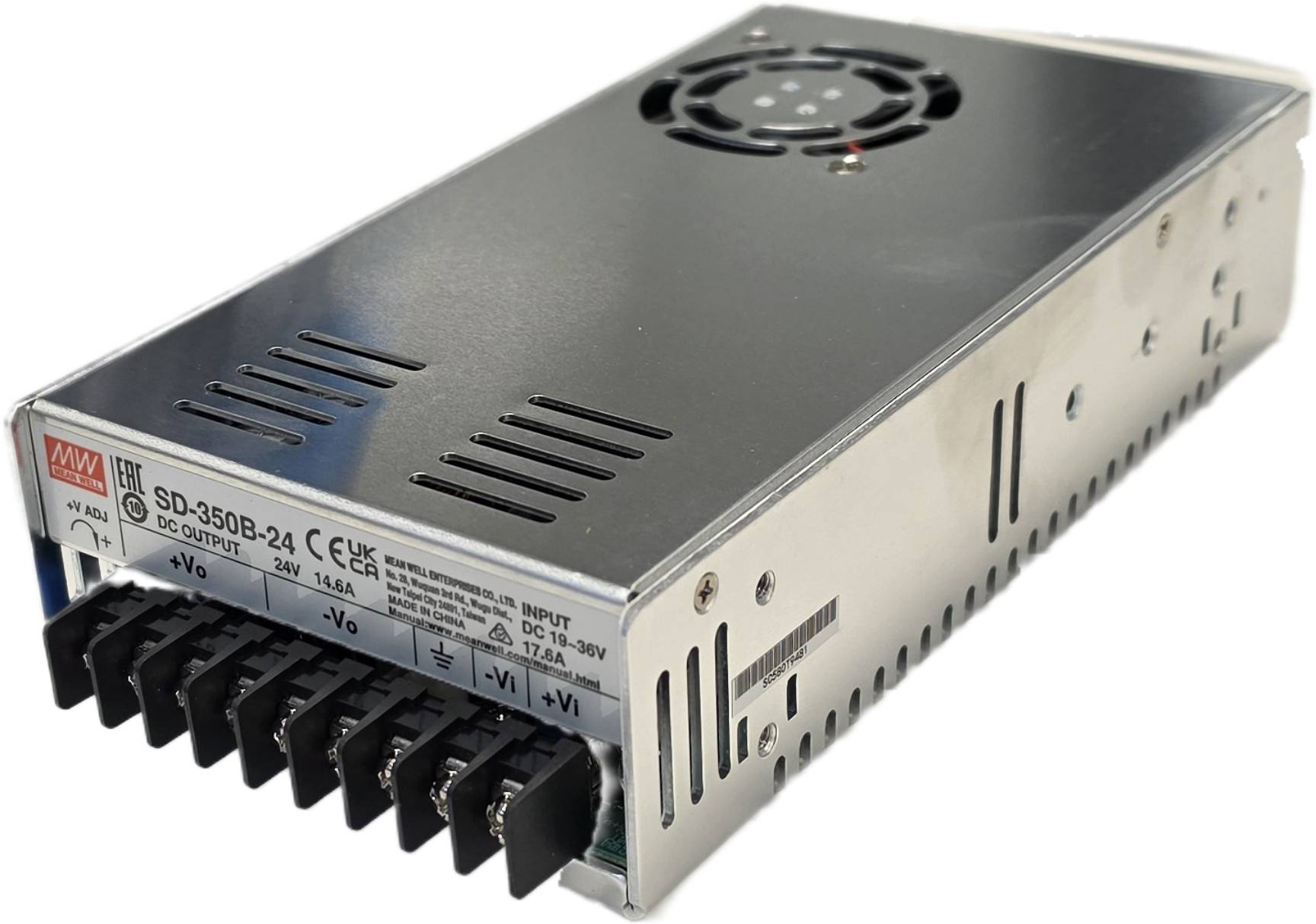

MEAN WELL SD-350B-24 DC/DC converter 24 V / 350 W
The MEAN WELL SD-350B-24 is a high-power DC/DC converter designed for industrial use that converts a 19–36 VDC input voltage to a stable 24 VDC output voltage. The unit is suitable for vehicles, battery-powered systems, telecommunications, industrial automation and other applications requiring a reliable, galvanically isolated DC voltage conversion.
Features
- Power 350 W
- Output voltage 24 VDC
- Output current up to 14.6 A
- Input voltage range 19–36 VDC
- 2:1 wide input voltage range
- 1500 VAC input/output isolation
- Built-in EMI filter
- Short-circuit, overload, overvoltage and overtemperature protection
- Cooling with integrated DC fan
- 100% load tested in production
- Chassis-mount metal housing
Technical specifications
- Manufacturer: MEAN WELL
- Model: SD-350B-24
- Converter type: DC/DC
- Rated power: 350.4 W
- Input voltage: 19–36 VDC
- Output voltage: 24 VDC
- Output current: 14.6 A
- Efficiency: typically 80%
- Operating temperature: -20 ... +60 °C
- Dimensions: 215 × 115 × 50 mm
- Weight: approximately 1.1 kg
Applications
- Vehicle and mobile machinery systems
- Industrial automation
- Telecommunication and networking equipment
- Battery-powered electrical systems
- Monitoring and control systems
