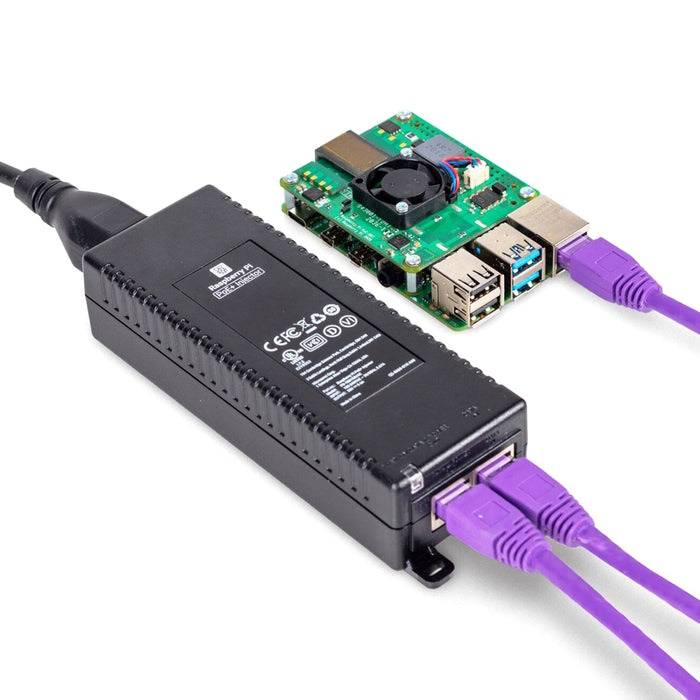

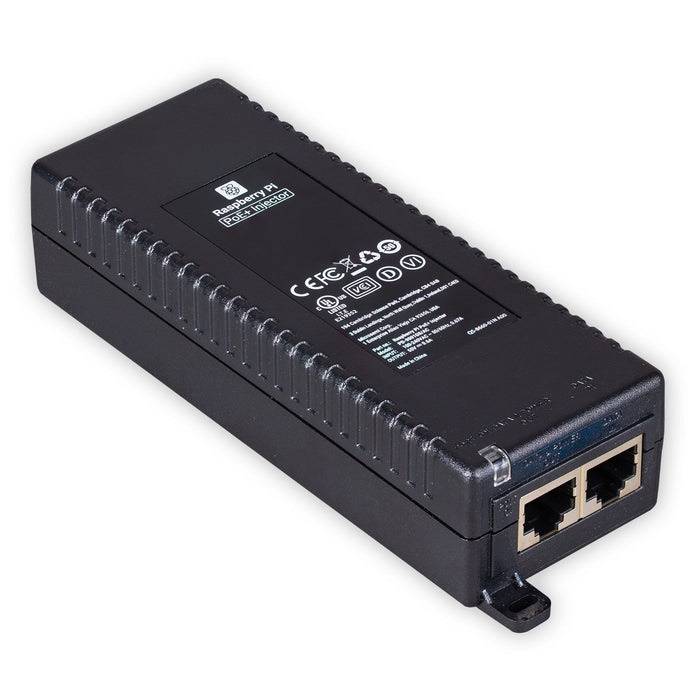

Raspberry Pi PoE+ Injector is a single-port Power over Ethernet power supply that enables power and data to be transmitted over the same Ethernet cable. The device is suitable for devices compliant with IEEE 802.3at and IEEE 802.3af standards, including Raspberry Pi PoE and PoE+ HAT add-on boards.

10/100/1000 Mbps network speed support and 30W maximum output power. Automatic device detection ensures connected devices receive the power they need while protecting non-compatible Ethernet devices from power delivery.

Powering Raspberry Pi 3B+, 4 and 5 models via PoE requires a compatible PoE add-on board. Power cable is not included.

Features

• PoE standard: IEEE 802.3at (PoE+)
• Compatibility: IEEE 802.3af devices
• Output power: 30 W
• Network speeds: 10 / 100 / 1000 Mbps
• Input voltage: 100–240 VAC
• Nominal output voltage: 55 VDC
• Power delivery in Ethernet cable: pins 4/5 (+), 7/8 (−)
• Data interfaces: shielded RJ45 connectors (EIA 568A / 568B)
• Power connector: IEC C13
• Dimensions: 159 × 51.8 × 33.5 mm
• Operating temperature: −10 ... +50 °C
• Storage temperature: −20 ... +70 °C
• Operating humidity: up to 90% RH, non-condensing
• Storage humidity: up to 95% RH, non-condensing
• Operating altitude: −300 ... 3000 m
• MTBF: 200 000 h @ 25 °C

Package includes

• Raspberry Pi PoE+ Injector

Note! IEC C13 power cable is not included.

Links

Manufacturer's product datasheet
