Note! Compatible with Raspberry Pi 5, but requires the RPI SC1128 adapter cable (see below)

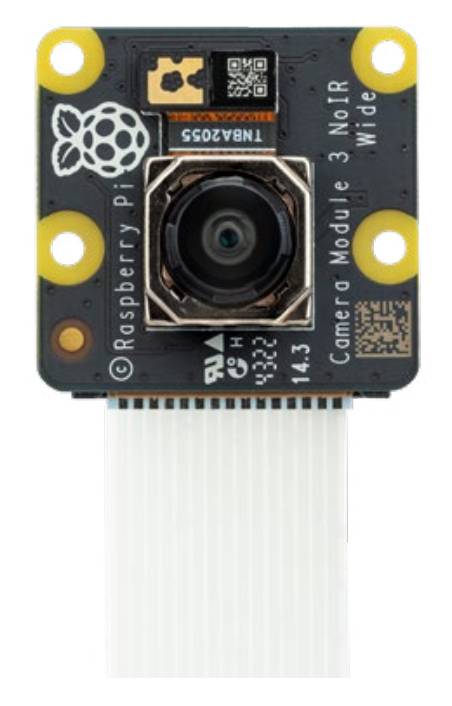

Raspberry Pi Camera Module 3 is a compact camera for the Raspberry Pi. It features a 12-megapixel IMX708 sensor with HDR and autofocus. The Camera Module 3 is available in standard and wide-angle versions, with or without an infrared filter.
NOTE! This model does not include an infrared filter.
Features
Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
High signal-to-noise ratio (SNR)
Built-in 2D Dynamic Defect Pixel Correction (DPC)
Phase Detection Autofocus (PDAF) for rapid autofocus
QBC Re-mosaic function
HDR mode (up to 3 megapixel output)
CSI-2 serial data output
2-wire serial communication (supports I2C fast mode and fast-mode plus)
2-wire serial control of focus mechanism
Specifications
Sensor: Sony IMX708
Resolution: 11.9 megapixels
Sensor size: 7.4mm sensor diagonal
Pixel size: 1.4μm × 1.4μm
Horizontal/vertical: 4608 × 2592 pixels
Common video modes: 1080p50, 720p100, 480p120
Output: RAW10
IR cut filter: Integrated in standard variants; not present in NoIR variants
