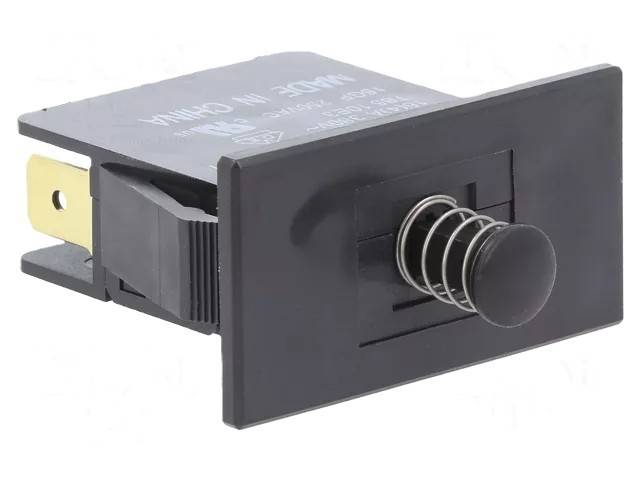

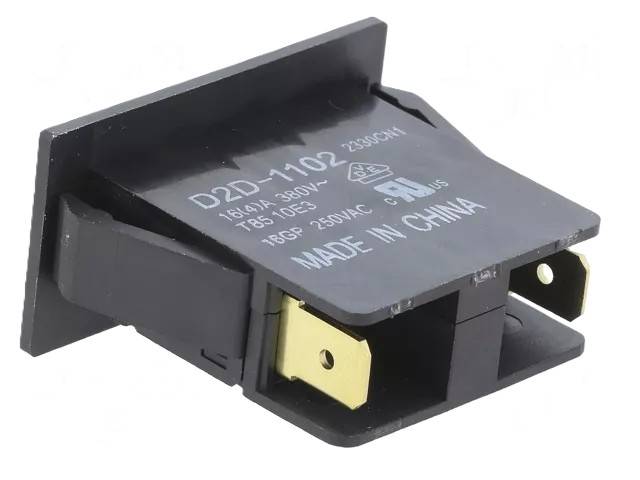

SAFETY DOOR SWITCH 1-POLE (ON)/OFF 16A 250VAC 30x12.4x3

Name: SAFETY DOOR SWITCH 1-POLE (ON)/OFF 16A 250VAC 30x12.4x3
Brand: Omron
SKU: D2D1102
Price: 9.80 EUR
Availability: InStock

Temporarily out of stock

SKU#: D2D1102

Temporarily out of stock

SKU#: D2D1102

9,80 €

Temporarily out of stock, delivery time 7-10 days

Add a comment about the product

Product Description

Switch type: Snap action / Door interlock

Contact configuration: SPST‑NC (normally closed)

Function: ON‑(OFF), momentary

Rated current: 16 A (AC)

Rated voltage: 250 VAC

Contact material: Silver

Contact opening gap: min. 3 mm (for safety applications)

Operating force: 300 gf (≈ 2,94 N)

Overtravel: approx. 5,5 mm

Mechanical life: 10 000 000 operations

Electrical life: 100 000 operations

Operating temperature: –25 … +85 °C

IP rating: IP40

RoHS: Compliant

Availability Temporarily out of stock, delivery time 7-10 days
Manufacturer Omron
Product path Home new-arrivals SAFETY DOOR SWITCH 1-POLE (ON)/OFF 16A 250VAC 30x12.4x3
SKU D2D1102
Attributes
- Operating temperature -25...+85℃
- Color musta
- Voltage class 250V
- Power Class 16A
- IP protection class IP40
- Connector type 6,3x0,8mm lattaliittimet
- Manufacturer's model D2D1102
