Most of the MCUs use TTL levels, and the computer serial port generally uses 232 levels. If we want the computer to communicate with the MCU, we need this RS-232 To TTL Conveter (MAX3232IDR).

This module is based on Max3232, it supports multiple baud rate communication and theoretically supports communication up to 230400bps baud.

Feature

• Easy to use
• Stable, high speed
• High cost performance
• ±15-kV ESD Protection
• Low power consumption
• Two Drivers and Two Receivers
• DB9 Female Header

Typical Applications

• Hand-Held Equipment
• Palmtop PCs

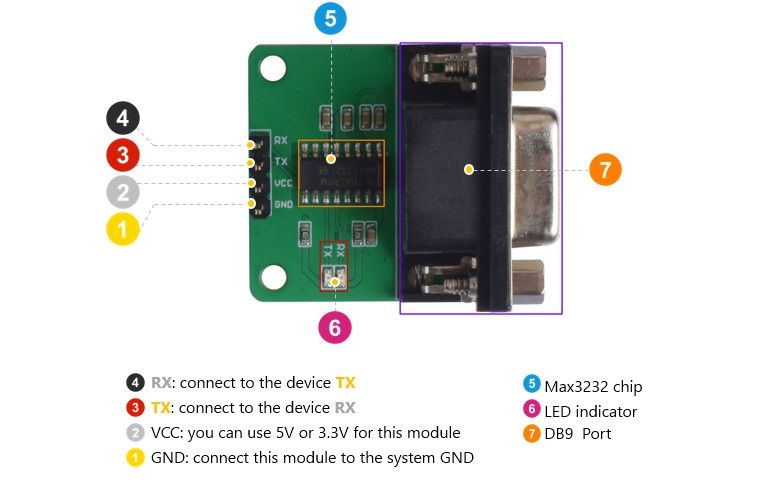

Pinout

[img-25599-left-desc_default]

Links

• Wiki RS-232 To TTL Conveter (MAX3232IDR)
