MEAN WELL RPS-65-7.5 medical-grade AC/DC open-frame power supply 7.5 V / 8 A / 60 W

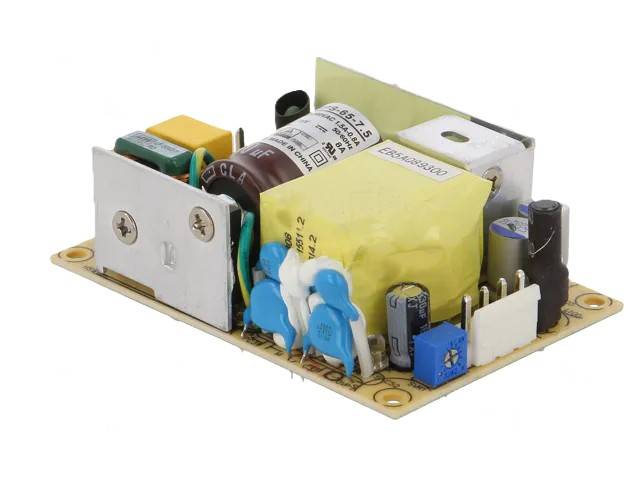

MEAN WELL RPS-65-7.5 is a compact open-frame AC/DC power supply that provides a stable 7.5 VDC output at up to 8 A. The power supply is designed specifically for medical and industrial applications where high safety, reliability and small size are required.
The RPS-65 series meets the IEC/EN/ANSI 60601-1 requirements for medical devices (2 x MOPP), making it suitable for patient-contacting BF-class applications when implemented in an appropriate system. The open-frame design allows easy integration into equipment and the small 3" × 2" board size saves installation space.
Features
- Output voltage: 7.5 VDC (trim 7.12–8.3V)
- Output current: 8 A
- Output power: 60 W
- Input voltage: 80...264 VAC, 47...63 Hz
- Compact 76.2 × 50.8 × 24 mm open-frame construction
- Medical approvals, 2 x MOPP
- 4 kVAC isolation voltage
- Free air convection, fanless
- Protections: short-circuit, overcurrent and overvoltage protection
- Low leakage current
- RoHS compliant
Typical applications
- Charging a 2-cell LiFePO4 battery finely tuned to 7.3V
- Medical devices and patient monitoring equipment
- Diagnostic and laboratory systems
- Industrial control and measurement equipment
- Embedded systems
- Communication and automation equipment
