The Raspberry Pi DAC Pro sound card’s Texas Instruments PCM5242 chip provides top-level signal-to-noise ratio and enables 24-bit / 192 kHz high-resolution audio playback.

The card fits all Raspberry Pi models that have a 40-pin GPIO connector. The card connects to the Raspberry Pi computer directly without soldering or separate cables. DAC Pro supports both RCA line-level output and balanced (differential) audio output, and also includes a separate headphone amplifier.

No external power supply required, as the card draws its operating power directly from the Raspberry Pi’s GPIO connector.

Features

• High-quality DAC/sound card for Raspberry Pi
• Texas Instruments PCM5242 audio chip
• Supports 24-bit / 192 kHz high-resolution audio
• Built-in headphone amplifier
• RCA output and balanced audio output
• Does not require a separate power supply
• Easy installation directly onto the GPIO connector

Technical specifications

• Chip: Texas Instruments PCM5242 DAC
• Resolution: 24-bit / 192 kHz
• Connector: 40-pin GPIO (HAT-compatible)
• Power: Via Raspberry Pi (no external power supply)
• Outputs:
  • RCA (phono) line-level
  • 3,5 mm headphone output
  • Balanced audio output (differential)
• Additional features: Power LED, GPIO passthrough

Package includes

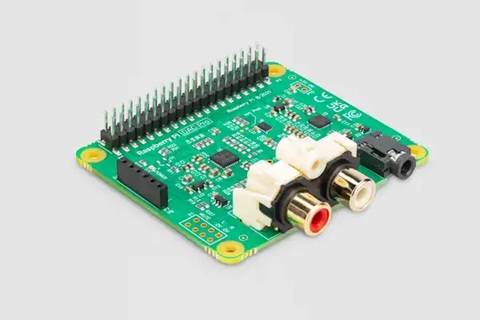

• Raspberry Pi DAC PRO HAT board
