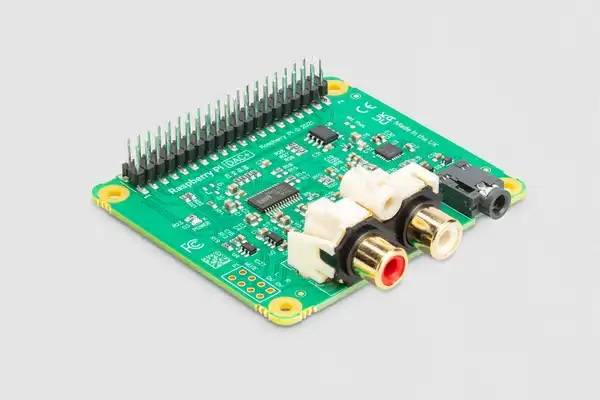

Raspberry Pi DAC+ sound card for Rasberry Pi single-board computers that have a 40pin GPIO connector. Texas Instruments PCM5122 chip enables 24-bit / 192 kHz high-resolution audio playback, making the board an excellent choice for media center and hi-fi projects.

The board is compatible with all Raspberry Pi models that have a 40-pin GPIO connector and draws power directly from the Pi without a separate power supply. DAC+ provides both RCA line-level output and a separate headphone amplifier with a 3.5 mm jack.

Features

• High-quality DAC sound card for Raspberry Pi
• Texas Instruments PCM5122 audio chip
• Supports 24-bit / 192 kHz audio quality
• Built-in headphone amplifier
• RCA line-level output
• Does not require a separate power supply
• Easy installation directly to the GPIO connector

Technical specifications

• Chip: Texas Instruments PCM5122 DAC
• Resolution: 24-bit / 192 kHz
• Connector: 40-pin GPIO (HAT-compatible)
• Power supply: via Raspberry Pi
• Outputs:
  • RCA (phono) audio output
  • 3.5 mm headphone output
• Additional features:
  • Power LED
  • Mute signal (headphone detection)
  • GPIO pass-through
• Operating temperature: 0–50 °C

Package contents

• Raspberry Pi DAC+ add-on board
