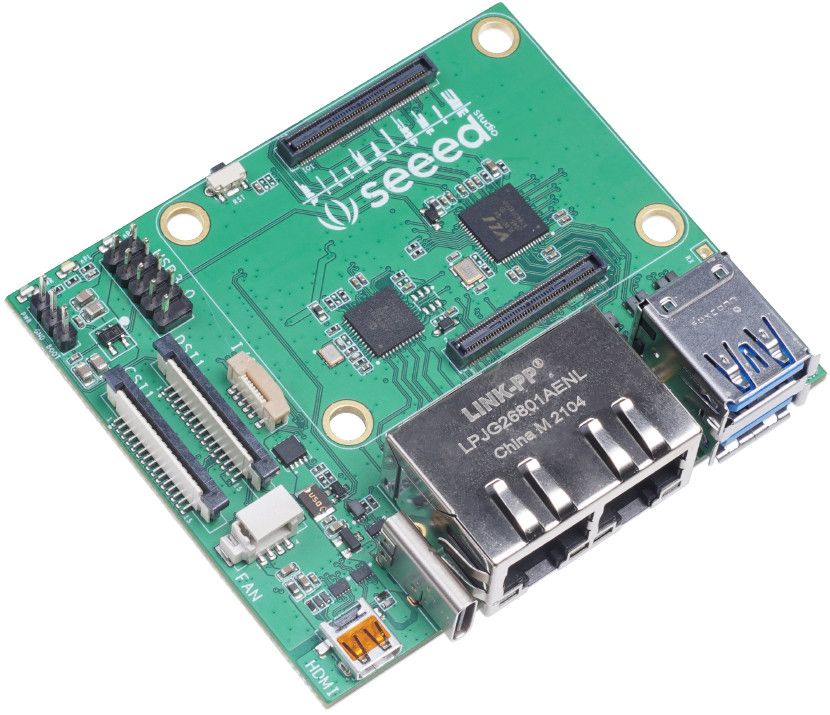

The Dual Gigabit Carrier Board for Raspberry Pi Compute Module 4 features two Gigabit Ethernet ports and two USB 3.0 ports, making it suitable for software router applications while keeping the hardware as small as possible.

PRODUCT DETAILS

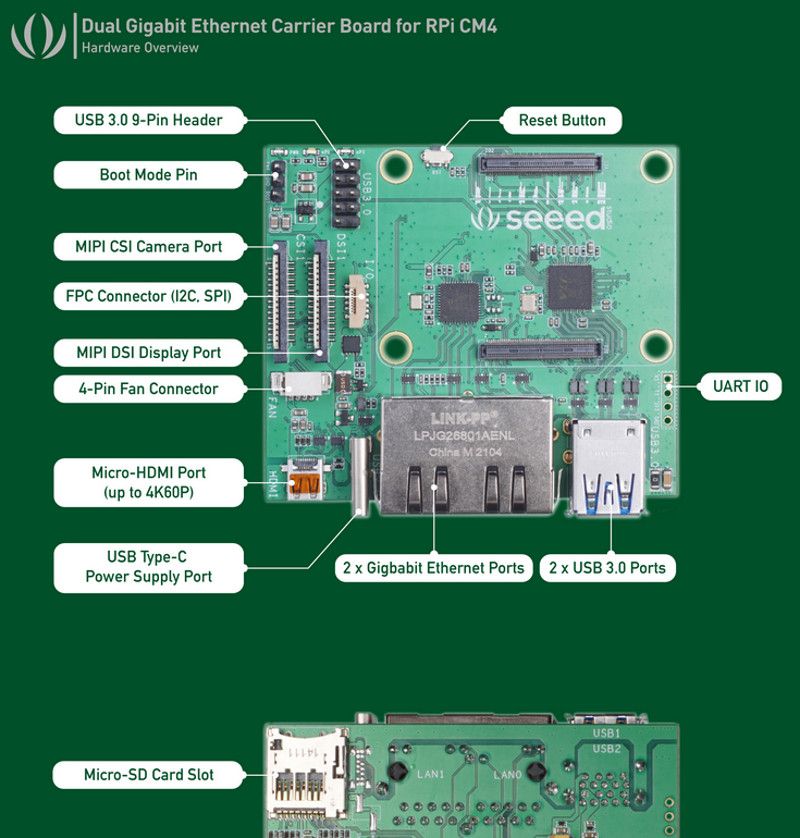

Features

• Compact size (75x64x21mm) and plenty of I/O peripherals.
• Two Gigabit Ethernet interfaces for software router applications
• Camera/display interfaces via MIPI CSI, MIPI DSI and micro-HDMI connectors.
• Built-in two USB 3.0 ports and an extra 9-pin USB 3.0 connector for additional external ports.
• Micro-SD card slot for loading a system image for CM4 versions without eMMC.
• Additional expandability via FPC connector (I2C, SPI)
• External fan support with fan power connector
• Powered via USB Type-C

Description

The Dual Gigabit Carrier Board for Raspberry Pi Compute Module 4 is equipped with two Gigabit Ethernet ports and two USB 3.0 ports, making it suitable for software router applications while keeping the hardware minimal.

It includes several I/O peripherals such as MIPI CSI, MIPI DSI and micro-HDMI for connecting displays/cameras, a standard 9-pin USB 3.0 connector for additional USB expansion, a micro-SD card slot and an FPC connector, all while maintaining a compact form factor! This board is ideal for HTPC builders, Linux developers, software router hobbyists and most regular Raspberry Pi users.

Technical specifications

Applications

• Software router
• IoT
• Smart home
• Camera projects

Parts list

• 1 x Dual Gigabit Ethernet Carrier Board for Raspberry Pi Compute Module 4.

Links

• Getting started with the Dual Gigabit Ethernet Carrier Board for Raspberry Pi CM4 module
• Microchip LAN7800 datasheet

Video

Note! Use RPI CM4 compatible heatsinks with this product.
