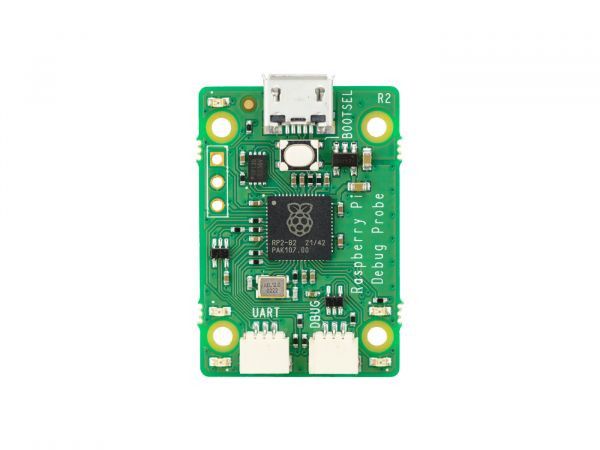

The Raspberry Pi Debug Probe is a perfect plug-and-play connection debugging solution, ideal for the Raspberry Pi Pico, XIAO RP2040, other RP2040-based microcontrollers, and microprocessor-based platforms. It combines a USB interface with its own serial debug connector and an industry-standard UART interface, both using a small, keyed, 3-pin debug connector released for the following standard.

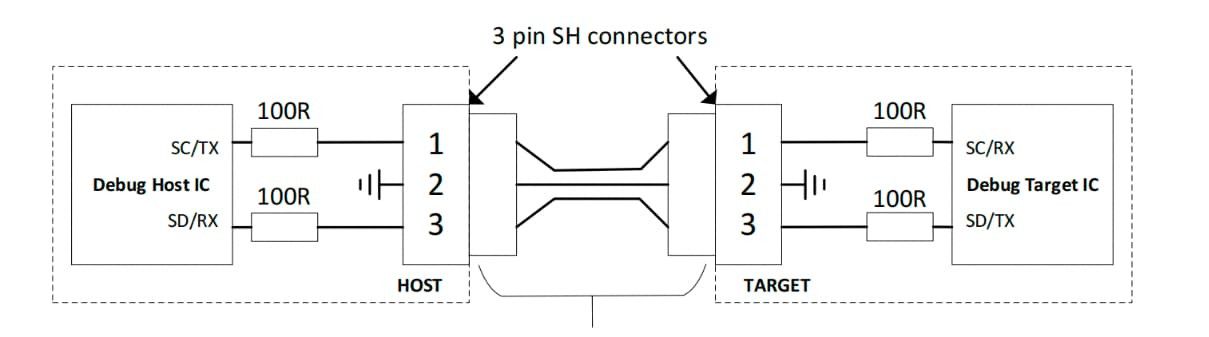

It uses a small, keyed, 3-pin debug connector designed to operate with a single unidirectional clock pin and a bidirectional data I/O pin. This arrangement can support systems such as ARM's Serial Wire Debug (SWD) or things like cJTAG.
It combines a USB connection with its own serial debug connector and an industry-standard UART interface. While the Debug Probe is primarily designed for use with Raspberry Pi debugging targets, it provides standard CMSIS-DAP debug and UART interfaces over USB. In other words, it can be used to debug other targets or simply as a cost-effective USB-UART cable.
Features
- All-in-one Debug Probe: combines a USB connection with its own serial debug connector and an industry-standard UART interface.
- Plug and Play: use the 3-pin debug connector to work with a single unidirectional clock pin and a bidirectional data I/O pin.
- Supports multiple debug targets: in addition to the Raspberry Pi Pico and RP2040, it supports platforms using other microcontrollers and microprocessors.
- Raspberry Pi production quality: based on the Raspberry Pi Pico hardware design and uses the open-source PicoProbe firmware.

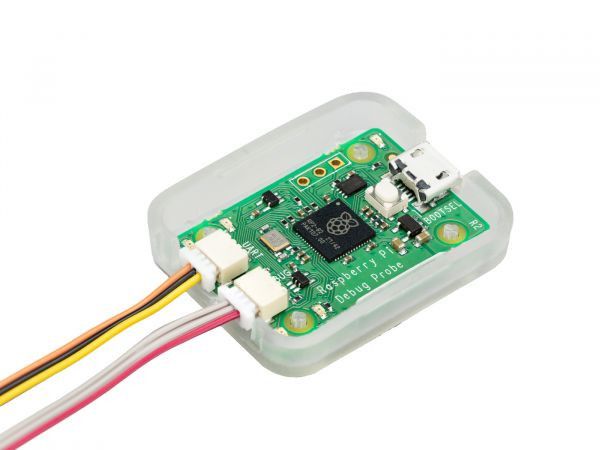

Parts list
| Raspberry Pi Debug Probe |
x1 |
| Plastic enclosure |
x1 |
| USB cable |
x1 |

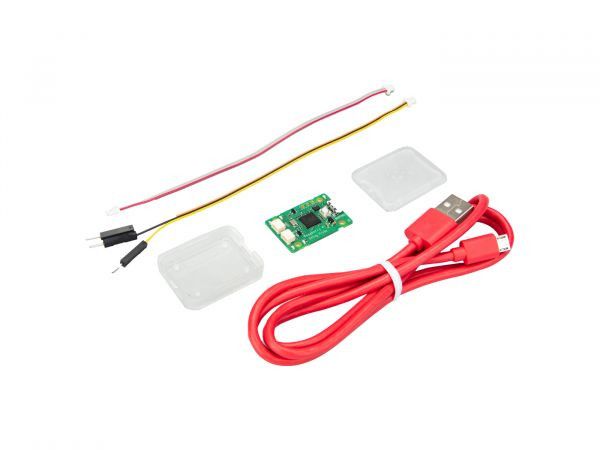

| Debug cables (3-pin debug to 3-pin debug, 3-pin debug to 0.1 inch header (female), 3-pin debug to 0.1 inch header (male)). |
x3 |
