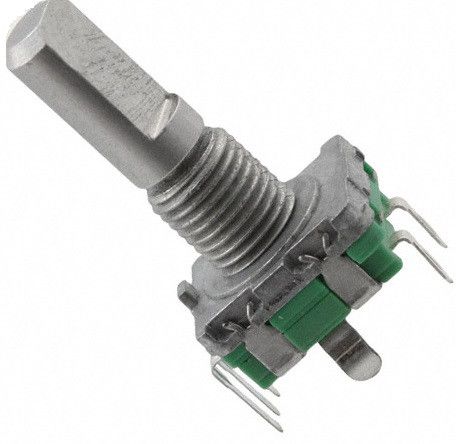

EN11-HSM1BF20 rotary encoder 20 PPR with push switch

TT Electronics / BI Technologies EN11-HSM1BF20 is an 11 mm mechanical incremental rotary encoder with a push switch and 20 detents. Suitable for panel and PCB mounting.

• Type: mechanical incremental encoder
• Resolution: 20 PPR
• Detents: 20
• Output: 2-bit Gray code / quadrature
• Channels: 2
• Shaft: Ø 6 mm, D-shaft
• Internal push switch: yes
• Mounting: vertical style, PCB / through-hole
• Connection: PC-pin
• Operating temperature: -30…+85 °C
• Mechanical life: at least 30,000 cycles
• RoHS compliant

Manufacturer: TT Electronics / BI Technologies
Manufacturer part number: EN11-HSM1BF20
