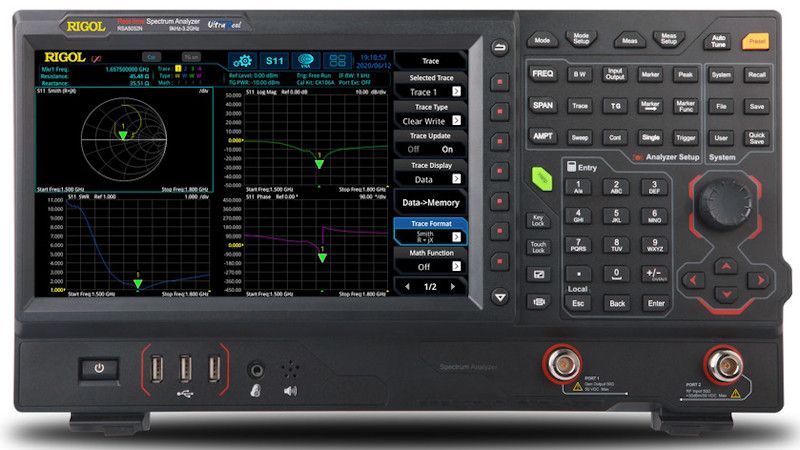

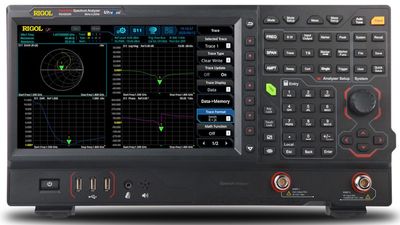

Rigolin RSA5000-series real-time spectrum analyzers are capable of capturing 100% of signals longer than 7.4us in real-time. In addition, the 5000N-series analyzers are equipped with a versatile vector network analyzer and a tracking signal generator for swept frequency measurements

Features

• Frequency range: 9kHz...3.2GHz
• Minimum detectable pulse width POI: 7.4us (in real-time mode)
• Min. displayed average noise level DANL: -165dBm (with preamplifier option) (typical)
• Min. resolution bandwidth RBW: 1Hz
• Phase noise: <-108dBc/Hz (typical)
• Real-time analysis bandwidth: 25MHz, expandable to 40MHz with option
• Vector network analyzer: S11 (reflection), S21 (transmission) and DTF (distance-to-fault) measurements
• Tracking signal generator
• Many different trigger modes and masks
• 10.1" touchscreen
• Interfaces: USB, LAN, HDMI

Accessories and options

• Vector signal analyzer (VSA) RS5000-VSA
• Electromagnetic interference measurement RSA5000-EMI
• Preamplifier RSA5000-PA
• 40MHz real-time bandwidth RSA5000-B40
• Advanced Measurement Kit RSA5000-AMK
• Temperature-stabilized oscillator OCXO-C08
• Rack kit RM6041
• VSWR bridge for filter and antenna measurements VB1032
• PC software Ultra Spectrum
• EMI Pre-compliance Test Software

The full list of accessories and options can be found in the RSA5000 datasheet

Delivery includes

• RSA5032N Spectrum Analyzer
• Quick Guide
• Power cord

Links

• RSA5000 Quick Guide
• RSA5000 User Guide
• RSA5000 Datasheet
• RSA5000 Programming Guide
• RSA5000 Open Source Acknowledgment
