Rigol RSA5000-VSA is vector signal analysis software designed for RSA5000-series real-time spectrum analyzers. It enables modulation analysis of signals and provides advanced tools for investigating vector signals.

Key features of RSA5000-VSA:

• Modulation analysis
  • Supports common modulation types such as ASK, FSK, PSK, QAM

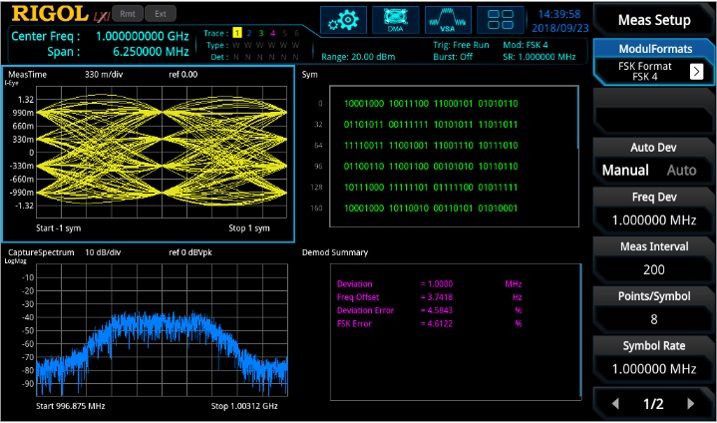

  • Displays the signal's vector constellation, errors and spectrum
• EVM (Error Vector Magnitude) analysis
  • Measures modulation accuracy and signal quality
• Real-time spectrum analysis
  • Shows the spectrum in real time, allowing dynamic signal inspection
• Time and frequency analysis
  • Viewing the signal both in the time domain (I/Q time window) and in the frequency domain
