Rigolin RSA3000-series real-time spectrum analyzers are capable of capturing 100% of signals longer than 9.3μs in real time. In addition, the RSA3000N-series analyzers are equipped with a versatile vector network analyzer and a tracking signal generator that follows frequency sweeps.

Features

• Frequency range: 9kHz...1.5GHz
• Minimum detectable pulse time POI: 9.3us (with options down to 7.45us)
• Min. displayed average noise level DANL: -160dBm (with preamplifier option) (typical)
• Min. resolution bandwidth RBW: 10Hz (1 Hz with option)
• Phase noise: <-102dBc/Hz (typical)
• Real-time analysis bandwidth: 10MHz, expandable up to 40MHz with options
• Vector network analyzer: S11 (reflection coefficient), S21 (transmission coefficient) and DTF (distance-to-fault) measurement
• Tracking signal generator
• Many different trigger modes and masks
• 10.1" touchscreen
• Interfaces: USB, LAN, HDMI

Accessories and options

• Vector signal analyzer (VSA) RS3000-VSA
• Electromagnetic interference measurement RSA3000-EMI
• Preamplifier RSA3000-PA
• Resolution bandwidth 1Hz-10MHz RSA3000-BW
• 25MHz real-time bandwidth RSA3000-B25
• 40MHz real-time bandwidth RSA3000-B40
• EMC filters and quasi-peak detection RSA3000-EMC
• Advanced Measurement Kit RSA3000-AMK
• Temperature-stabilized oscillator OCXO-C08
• Rack kit RM6041
• VSWR bridge for filter and antenna measurements VB1032
• PC software Ultra Spectrum
• EMI Pre-compliance Test Software

Full list of accessories and options can be found in the RSA3000 datasheet

Delivery includes

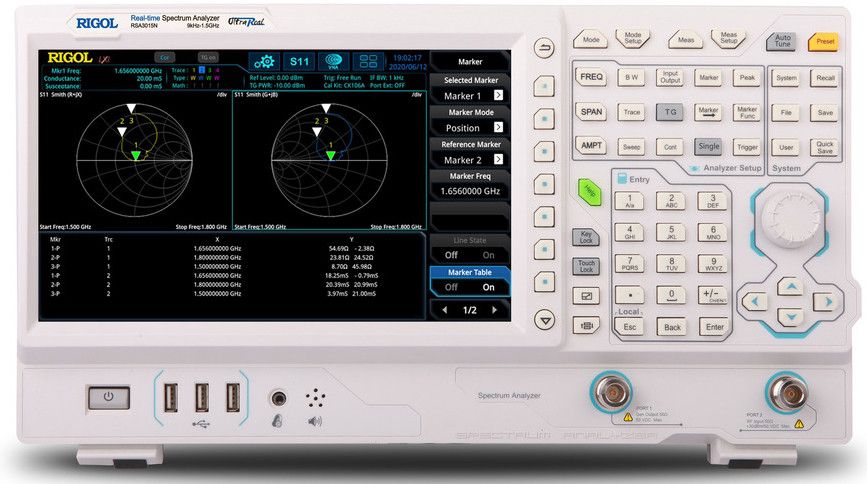

• RSA3015N Spectrum Analyzer
• Quick Guide
• Power cord
