Rigol RPL2316 LOGIC ANALYSER WIRE HARNESS

Name: Rigol RPL2316 LOGIC ANALYSER WIRE HARNESS
Brand: Rigol
SKU: RGRPL2316
Price: 463.09 EUR
Availability: InStock

Temporarily out of stock

SKU#: RGRPL2316

Rigol RPL2316 LOGIC ANALYSER WIRE HARNESS

Rigol RPL2316 LOGIC ANALYSER WIRE HARNESS

Temporarily out of stock

SKU#: RGRPL2316

Rigol RPL2316 - 16-channel logic analyzer lead set for Rigol MSO2000A-, MSO4000-, MSO7000- and MSO8000-series mixed-signal oscilloscopes

463,09 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

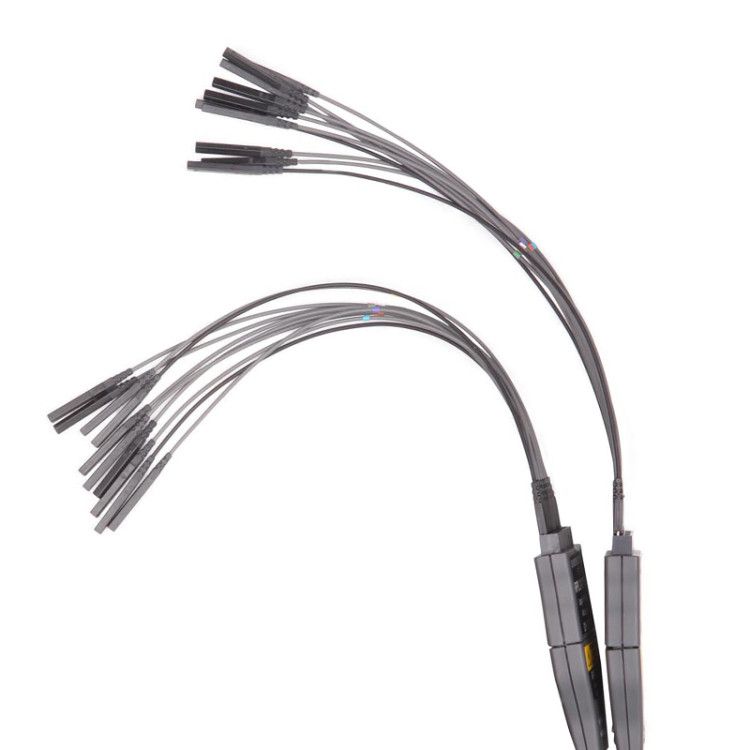

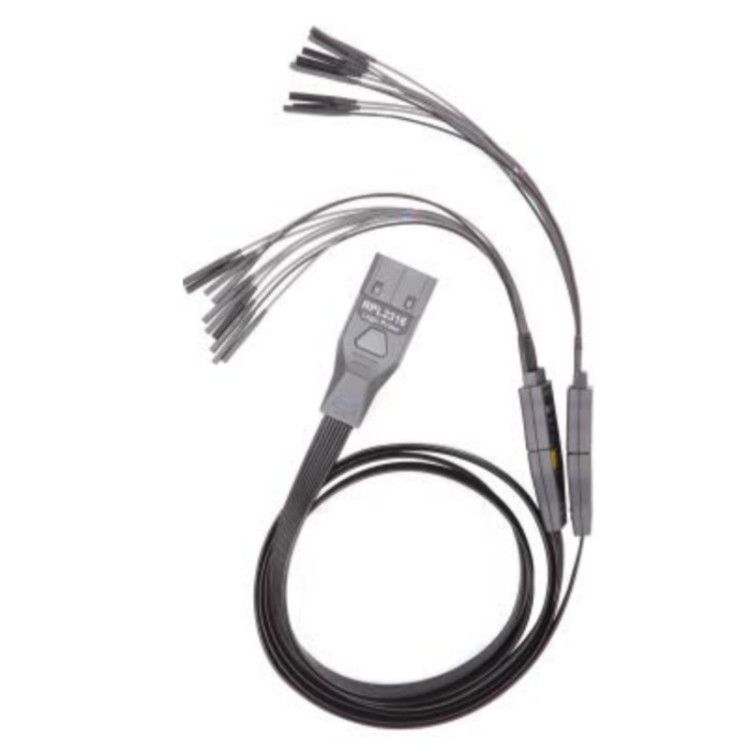

RPL2316 is a high-quality logic analyzer lead set designed to connect digital buses and signals to Rigol MSO2000A, MSO4000, MSO7000 and MSO8000 series mixed-signal oscilloscopes.

It splits 16 digital channels into two branches, each containing 8 signal channels (D0–D7 and D8–D15) and 12 ground channels, enabling flexible signal connections and improving signal integrity.

RPL2316 Technical Specifications

Feature	RPL2316
Input voltage channels	16
Threshold range	±20 V
Threshold accuracy	±100 mV + 3% of threshold setting
Maximum voltage swing	±40 V
Minimum voltage swing	500 mV
Minimum detectable pulse width	5 ns
Input impedance	101 kΩ
Probe loading	Approximately 8 pF
Cable length	Approximately 100 cm
Lead length	Approximately 15 cm
Operating temperature	0°C - 50°C, 0% - 80% RH
Storage temperature	-20°C - 60°C, 0% - 90% RH

Package includes

1x Main cable
2x Logic adapter
20x Leads (2×10)
20x Grabbers
1x User manual (Chinese and English)
1x RPL2316 Soft carrying case

Link

RPL2316 User Guide (PDF)
