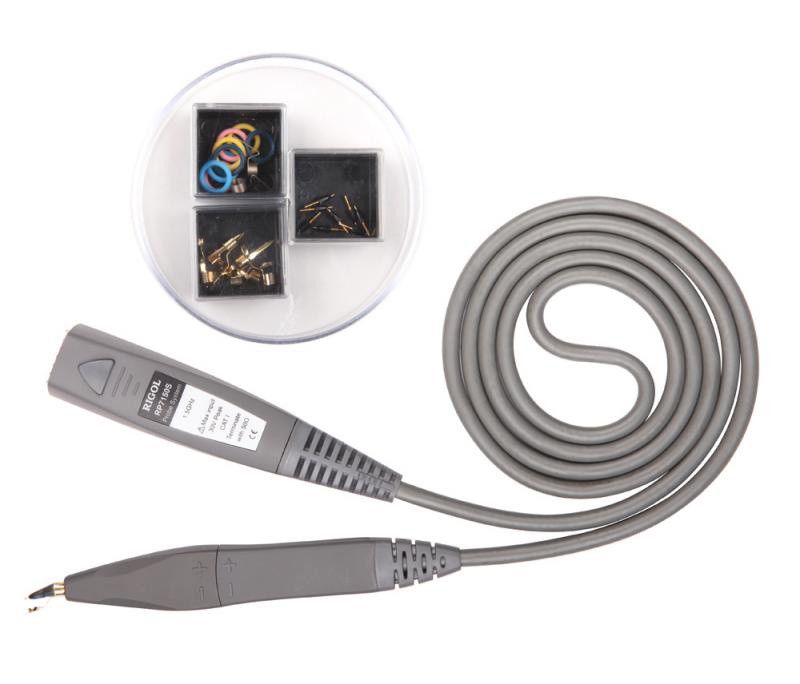

RP7150S is an active probe solution for high-frequency applications.

The RP7000S series uses a plug-in tip to optimize performance and usability. In addition, its replaceable tip extends the probe head's service life, and the distance between the tip and the grounding collar can be precisely adjusted to suit different test point spacings.

The RP7000S is compatible with the RIGOL DS8000-R, MSO8000/A and MSO/DS7002 series oscilloscope auto-detection port, and it can be automatically recognized and configured using this port. Its snap-in BNC connector allows easier connection to an oscilloscope. The RP7000S platform offers various accessories and options as well as multiple interchangeable add-ons, enabling use in a variety of tests and measurements.

Features

• DC-1.5 GHz bandwidth
• Rise time <265 ps
• Attenuation ratio 10:1 ± 2 %
• Input impedance 100 kOhm ± 2 %.
• Input capacitance <1pF
• Input dynamic range ±6.25V
• Offset range ±12 V
• Offset accuracy <1 % (after calibration)
• Maximum input voltage 30 Vpc CAT1
• Input noise 70 mVp-p
• Electrostatic protection >8 kV
• Delay 7 ns
• Cable length 1.4 m
• Power consumption 1.2 W
• Weight 132 g

Package includes

• 1 pc User Manual RP7-0601
• 1 pc Carrying Case RP7-0603
• 1 pc Probe Head Bag RP7-0602
• 1 pc Active Probe Head Amplifier RP7S-0150
• 1 pc Handheld Single-Ended Probe RP7-0205
• 9 pcs 91Ω Probe Tips RP7-0405
• 2 pcs Straight Sharp Grounding Collar RP7-0501
• 2 pcs Curved Sharp Grounding Collar RP7-0502
• 2 pcs Straight Serrated Grounding Collar RP7-0503
• 2 pcs Curved Serrated Grounding Collar RP7-0504
• 8 pcs Identification Rings (Yellow/Pink/Light Blue/Dark Blue) RP-0203
• 1 pc Active Probe Calibration Kit PCK100
