RP7080S is an active probe solution for high-frequency applications.

The RP7000S series uses a plug-in tip to optimize performance and usability. In addition, its replaceable tip extends the probes service life, and the distance between the tip and the grounding collar can be precisely adjusted to suit the spacing of different test points.

The RP7000S is compatible with the automatic detection port of RIGOL DS8000-R, MSO8000/A and MSO/DS7002 series oscilloscopes, and it can be automatically identified and configured via this port. Its snap-in BNC connector allows easier connection to the oscilloscope. The RP7000S platform offers various accessories and options as well as several interchangeable add-ons, making it usable in a variety of tests and measurements.

Features

• DC-800MHz bandwidth
• Rise time <465ps
• Attenuation ratio 10:1 ± 2 %
• Input impedance 100 kOhm ± 2 %.
• Input capacitance <1pF
• Input dynamic range ±6,25V
• Offset range ±12 V
• Offset accuracy <1 % (after calibration)
• Maximum input voltage 30 Vpc CAT1
• Input noise 70 mVp-p
• Electrostatic protection >8 kV
• Delay 7 ns
• Cable length 1,4 m
• Power consumption 1,2 W
• Weight 132 g.



Package contents

• 1 pc RP7-0601 User Manual
• 1 pc RP7-0603 Carrying Case
• 1 pc RP7-0602 Probe Pouch

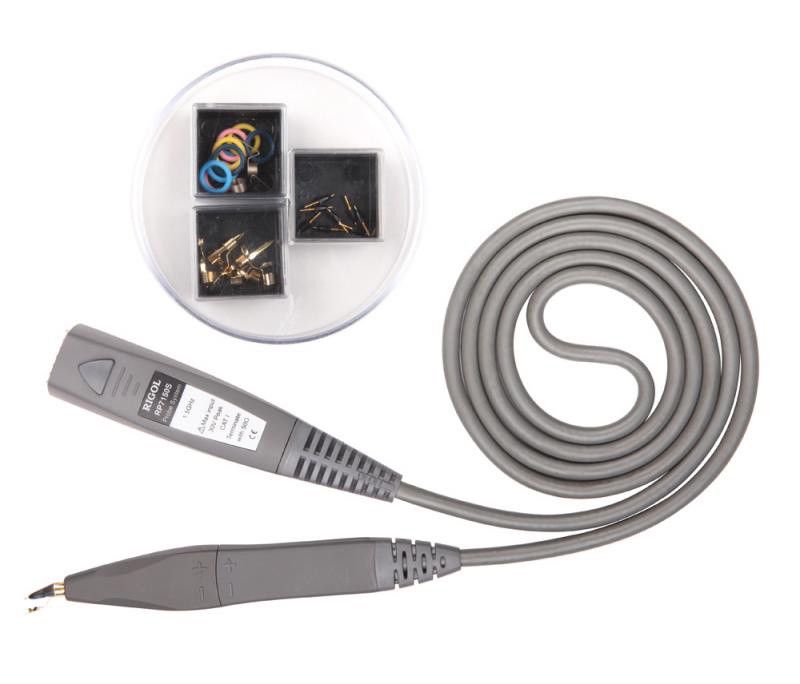

• 1 pc RP7S-0080 Active Probe Amplifier
• 1 pc RP7-0205 Handheld Single-Ended Probe
• 9 pcs 91Ω Probe Tips RP7-0405
• 2 pcs Straight Sharp Grounding Collar RP7-0501
• 2 pcs Curved Sharp Grounding Collar RP7-0502
• 2 pcs Straight Serrated Grounding Collar RP7-0503
• 2 pcs Curved Serrated Grounding Collar RP7-0504
• 8 pcs Identification Rings (Yellow/Pink/Light Blue/Dark Blue) RP-0203
• 1 pc Active Probe Calibration Kit PCK100
