Rigol RP5600A is an excellent choice as a probe for general oscilloscope measurements. It is well suited for both beginners and experts who need reliable and accurate measurements across a wide frequency range.

The modular design allows exchanging probe tips as needed. The compact construction and a snap-on BNC connector make connecting to an oscilloscope effortless.

Compatible especially with DS4000, DS6000 and DS7000 series oscilloscopes.

Features

• Bandwidth: Up to 600 MHz.
• Attenuation: Fixed 10:1.
• Input impedance: 10 MΩ ±2%.
• Input capacitance: 12 pF ±1 pF.
• Maximum input voltage: AC RMS 12 kV CAT II.
• Compensation range: 6 pF – 26 pF.

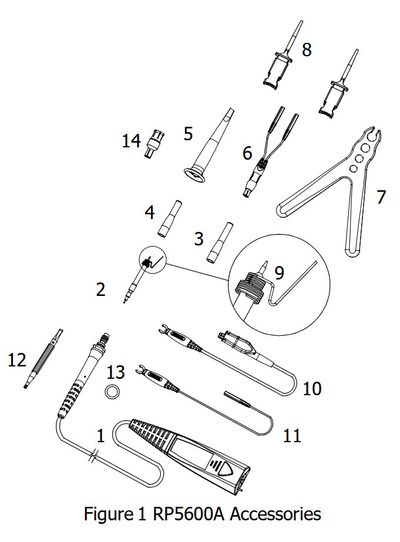

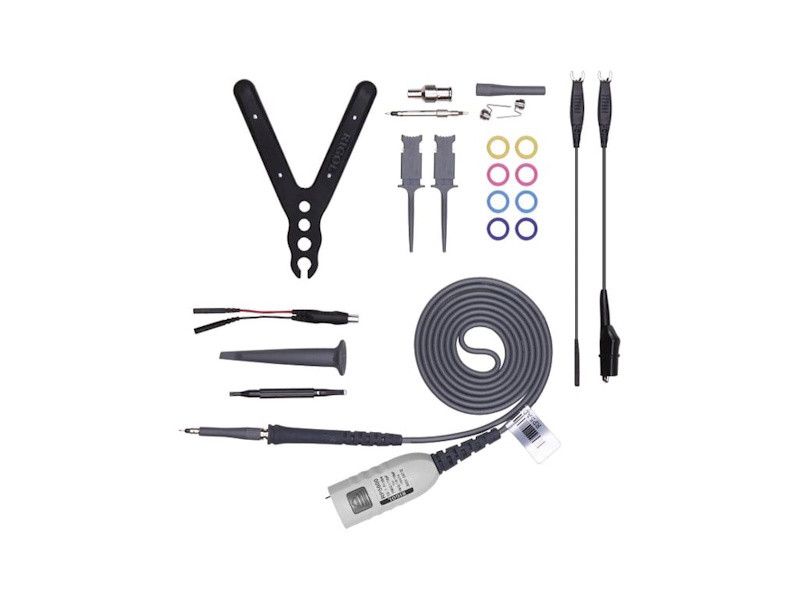

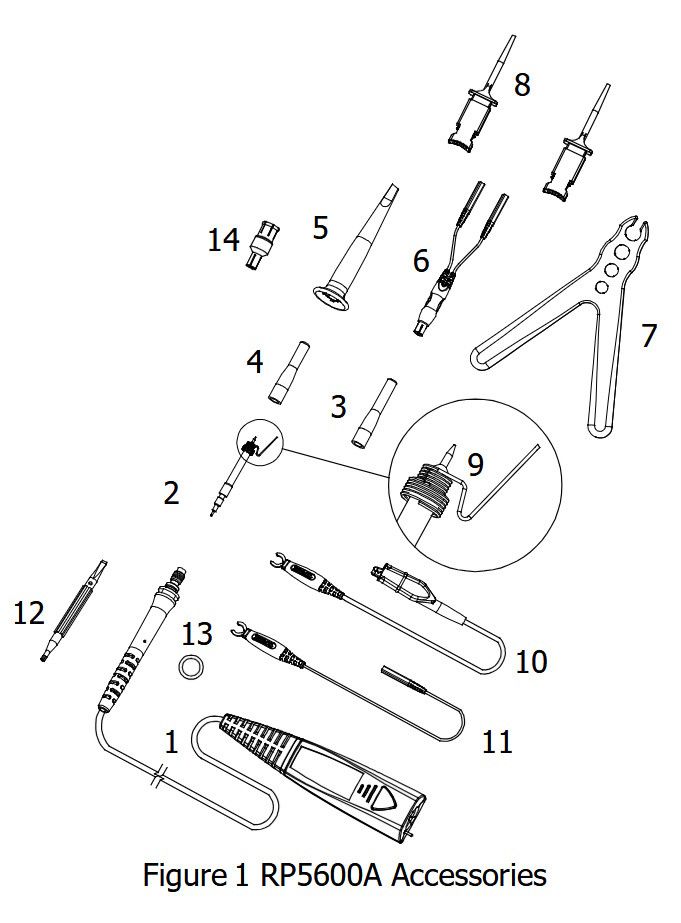

Package includes

• Probe
• Probe tips
• Long and short protective sleeve
• Reversible hook tip
• Dual-lead connector
• Probe stand
• SMD clips
• Spring ground
• Alligator ground lead
• Ground lead with plug
• Screwdriver
• Identification rings
• BNC adapter

Links

• User's Guide for RP5600A (pdf)
