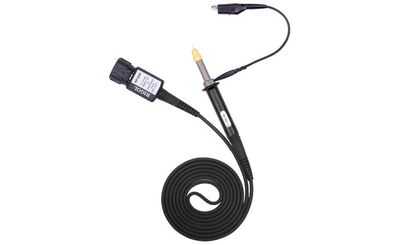

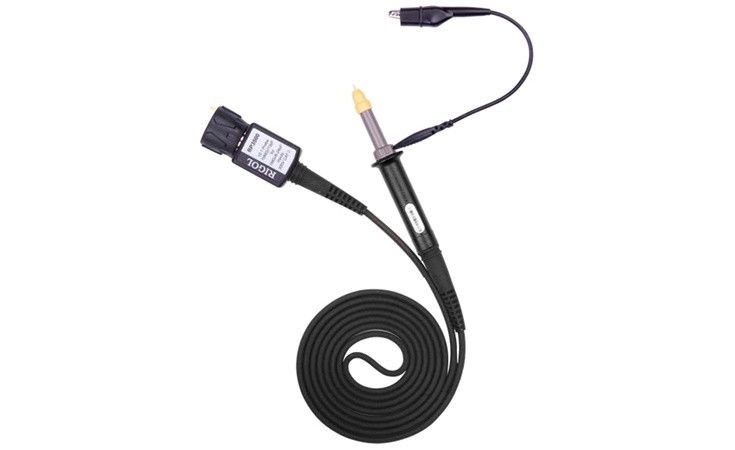

Rigol RP3500A 500MHz 10:1 PASSIVE HIGH IMPENDANCE PROBE

Name: Rigol RP3500A 500MHz 10:1 PASSIVE HIGH IMPENDANCE PROBE
Brand: Rigol
SKU: RGRP3500A
Price: 225.90 EUR
Availability: InStock

Temporarily out of stock

SKU#: RGRP3500A

Rigol RP3500A 500MHz 10:1 PASSIVE HIGH IMPENDANCE PROBE

Temporarily out of stock

SKU#: RGRP3500A

Rigol RP3500A - 500MHz passive 10:1 low-impedance probe. Compatible with Rigol MSO8000/A-, MSO/DS7000-, MSO5000- and DS1000Z/-E-series oscilloscopes.

225,90 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

The RIGOL RP3500A is a passive low-impedance probe designed especially for high-frequency measurements. Its bandwidth extends up to 500 MHz, allowing accurate measurements over a wide frequency range.

The probe is compatible with, among others, the Rigol MSO8000/A-, MSO/DS7000-, MSO5000- and DS1000Z/-E-series oscilloscopes.

Features

Attenuation ratio	10:1
Input impedance	10 M2 2%
Bandwidth	DC ~ 500 MHz
Compensation range	6 pF ~ 24 pF
Max. input voltage	CAT II 300 VAC
Cable length	1,4 m

Package contents

Probe
Spring-loaded hook tip
8 identification rings (yellow, pink, light blue and dark blue)
Ground lead
Ground spring

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Measuring Instruments By Manufacturer Rigol Accessories Rigol RP3500A 500MHz 10:1 PASSIVE HIGH IMPENDANCE PROBE
SKU RGRP3500A
Attributes
- Interface BNC
- Bandwidth 500MHz
- Manufacturer's model RP3500A
- Click for more details https://int.rigol.com/products/products/PassiveProbe
- Factory delivery time 3 weeks
