Rigol RP1300H 300MHz 1.5kV HGH VOLTAGE PASSIVE PROBE

Name: Rigol RP1300H 300MHz 1.5kV HGH VOLTAGE PASSIVE PROBE
Brand: Rigol
SKU: RGRP1300H
Price: 312.49 EUR
Availability: InStock

Temporarily out of stock

SKU#: RGRP1300H

Rigol RP1300H 300MHz 1.5kV HGH VOLTAGE PASSIVE PROBE

Temporarily out of stock

SKU#: RGRP1300H

Rigol RP1300H - 300MHz 100:1 passive general-purpose 1,5kV high-voltage probe. Compatible with all Rigol and other manufacturers' oscilloscopes.

312,49 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

The RIGOL RP1300H is a passive probe designed for higher voltages with 100:1 attenuation. Its bandwidth extends to 300MHz, allowing accurate measurements across a wide frequency range.

Voltage rating CAT I 2000 V (DC+AC), CAT II 1500 V (DC+AC)

The probe is compatible with e.g. DS8000-R, MSO8000/A, MSO/DS7000, MSO5000 and DS1000Z/-E series oscilloscopes.

Features

Attenuation Ratio	100 : 1
Input impedance	100 MΩ
Bandwidth	300 MHz
Rise time	1.2 ns
Compensation	10 - 35 pF
Max. Input	CAT I 2000 V (DC+AC), CAT II 1500 V (DC+AC)
Cable range	1.35 m

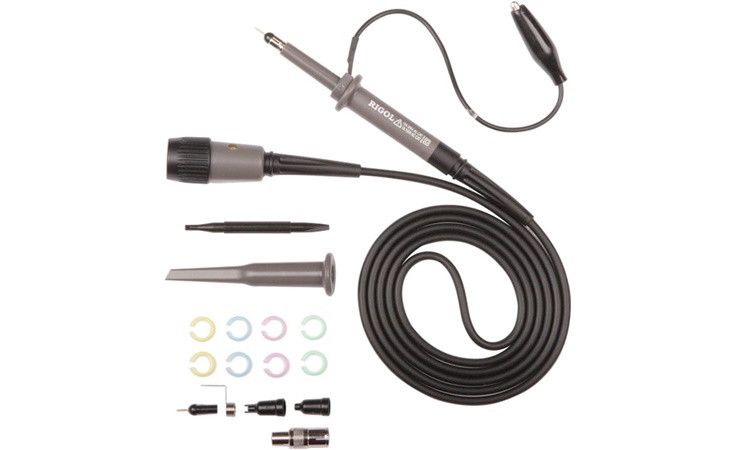

Package contents

Probe
Spring-loaded hook tip
8 identification rings (yellow, pink, light blue and dark blue)
Ground lead
Ground spring
BNC adapter
Insulating cap

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Measuring Instruments By Manufacturer Rigol Accessories Rigol RP1300H 300MHz 1.5kV HGH VOLTAGE PASSIVE PROBE
SKU RGRP1300H
Attributes
- Interface BNC
- Bandwidth 300MHz
- Manufacturer's model RP1300H
- Click for more details https://int.rigol.com/products/products/PassiveProbe
- Factory delivery time 3 weeks
