The RP1000D series high-voltage differential probe is designed to measure large voltage differences between two points safely and accurately. It does not measure voltage only relative to ground like ordinary probes, but can measure voltage directly between two energized points.
The probe is compatible with, among others, Rigol DS8000-R, MSO8000/A, MSO/DS7000, MSO5000 and DS1000Z/-E, and other oscilloscopes.
RP1100D Specifications
| Feature | Description |
|---|
| RP1100D |
|
| Bandwidth |
DC - 100MHz (-3dB) |
| Attenuation ratios |
X100, X200, X500, X1000 |
| Accuracy |
±2% |
| Input voltage range (DC + AC peak-to-peak) |
X100 attenuation: ≤ 700Vpp, approx. 230Vrms or DC
X200 attenuation: ≤ 1400Vpp, approx. 460Vrms or DC
X500 attenuation: ≤ 3500Vpp, approx. 1140Vrms or DC
X1000 attenuation: ≤ 7000Vpp, approx. 2300Vrms or DC |
| Maximum input voltage |
Maximum differential: 7000V (DC+AC peak-to-peak) or 2300Vrms
Voltage to ground at input connector: 1200Vrms |
| Input impedance |
Differential: 16MΩ/1.2pF
Single-ended and to ground: 8MΩ/2.3pF |
| Output voltage |
≤ ±8.0V |
| Output impedance |
50Ω |
| Noise rejection |
60Hz: > 50dB
100Hz: > 50dB
1MHz: > 50dB |
| Power supply |
Separate 9V DC power supply (must be RIGOL approved products) |
| Power consumption |
< 300 mA |

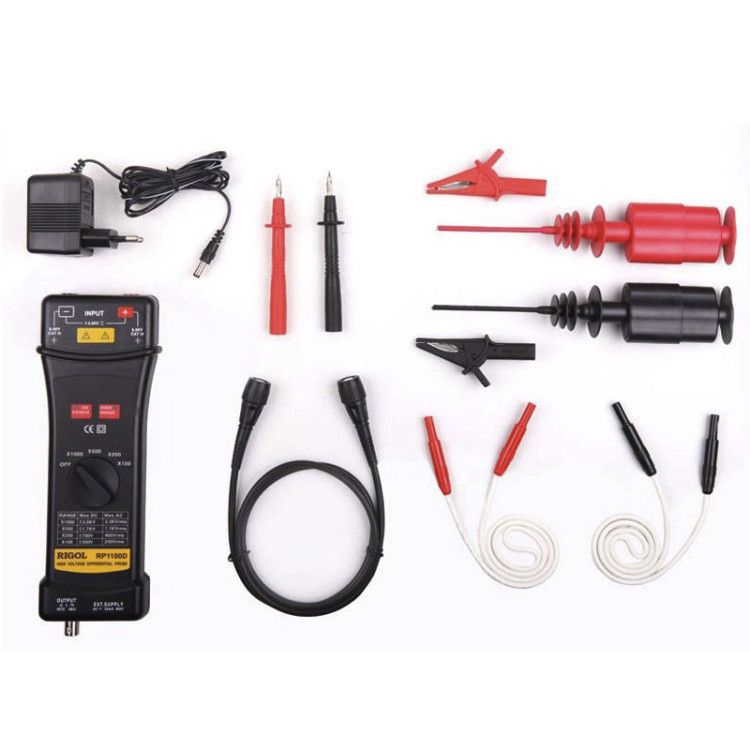

Package includes
- 1x User manual in Chinese and English
- 1x AC power adapter, EU type
- 1x Dual BNC coaxial cable, 50Ω impedance, RG58C UL, 100 cm length
- 2x High-voltage double banana plug with silicone cable, UL 20KV, 16AWG, 60 cm length
- 2x High-voltage IC tweezers, maximum 6500V (DC+AC p-p)
- 2x High-voltage alligator connector, UL 1000V CAT II, 10A
- 2x Spring-loaded connector hook, UL 1000V, CAT III
Link
RP1000D series user manual (pdf)
