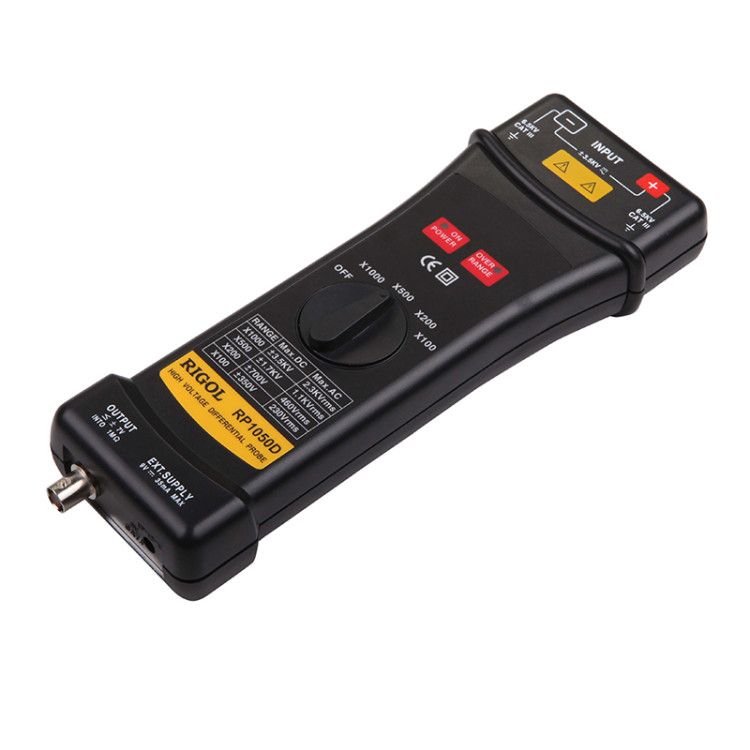

The RP1000D series high-voltage differential probe is designed to measure large voltage differences between two points safely and accurately. It does not measure voltage only relative to earth like ordinary probes, but can measure the voltage directly between two live points.
The probe is compatible with Rigol DS8000-R, MSO8000/A, MSO/DS7000, MSO5000 and DS1000Z/-E, among other oscilloscopes.
RP1050D Specifications
| Bandwidth |
DC - 50MHz (-3dB) |
| Attenuation |
X100, X200, X500, X1000 |
| Accuracy |
±2% |
| Input voltage range (DC + AC peak-to-peak) |
X100 attenuation: ≤ 700Vpp (~230Vrms or DC)
X200 attenuation: ≤ 1400Vpp (~460Vrms or DC)
X500 attenuation: ≤ 3500Vpp (~1140Vrms or DC)
X1000 attenuation: ≤ 7000Vpp (~2300Vrms or DC) |
| Maximum input voltage |
Maximum differential voltage: 7000V (DC+AC peak-to-peak) or 2300Vrms
Voltage to earth at input connector: 1200Vrms |
| Input impedance |
Differential: 16MΩ / 1pF
Single-ended and to earth: 8MΩ / 2pF |
| Output voltage |
≤ ±7.0V |
| Output impedance |
50Ω |
| Rise time |
7ns |
| Common-mode rejection |
60Hz: > 50dB
100Hz: > 50dB
1MHz: > 50dB |
| Power supply |
Specified external 9V DC power supply (approved by RIGOL) |
| Power consumption |
<300 mA |
Package includes
- 1x User manual in Chinese and English
- 1x AC power adapter
- 1x Dual-BNC coaxial cable 50Ω impedance RG58C UL 100cm
- 2x Dual-banana connector silicone cable UL 6KV 18AWG 60cm (Red: 1; Black: 1)
- 2x HV IC hook UL 1000V CAT III (Red: 1; Black: 1)
- 2x HV alligator connector UL 1000V CAT II, 10A (Red: 1; Black: 1)
Link
RP1000D series user manual (pdf)
