The RP1000D-series high-voltage differential probe is designed to measure large voltage differences between two points safely and accurately. It does not measure voltage only relative to earth like ordinary probes, but can measure the voltage directly between two energized points.
The probe is compatible with, among others, Rigol DS8000-R, MSO8000/A, MSO/DS7000, MSO5000 and DS1000Z/-E, and other oscilloscopes.
RP1025D Specifications
| Bandwidth |
DC - 25MHz (-3dB) |
| Attenuation |
X20, X50, X200 |
| Accuracy |
±2% |
| Input voltage range (DC + AC peak-to-peak) |
X20 attenuation: ≤ 140Vpp (~50Vrms or DC)
X50 attenuation: ≤ 350Vpp (~125Vrms or DC)
X200 attenuation: ≤ 1400Vpp (~500Vrms or DC) |
| Maximum input voltage |
Maximum differential voltage: 1400V (DC+AC peak-to-peak) or 500Vrms
Voltage to earth at input terminal: 240Vrms |
| Input impedance |
Differential: 4MΩ / 1.2pF
Single-ended and to earth: 2MΩ / 2.3pF |
| Output voltage |
≤ ±6.5V |
| Output impedance |
50Ω |
| Rise time |
14ns |
| Common-mode rejection |
60Hz: > 50dB
100Hz: > 50dB
1MHz: > 50dB |
| Power supply |
Specified external 9V DC power adapter (approved by RIGOL) |
| Power consumption |
<300 mA |

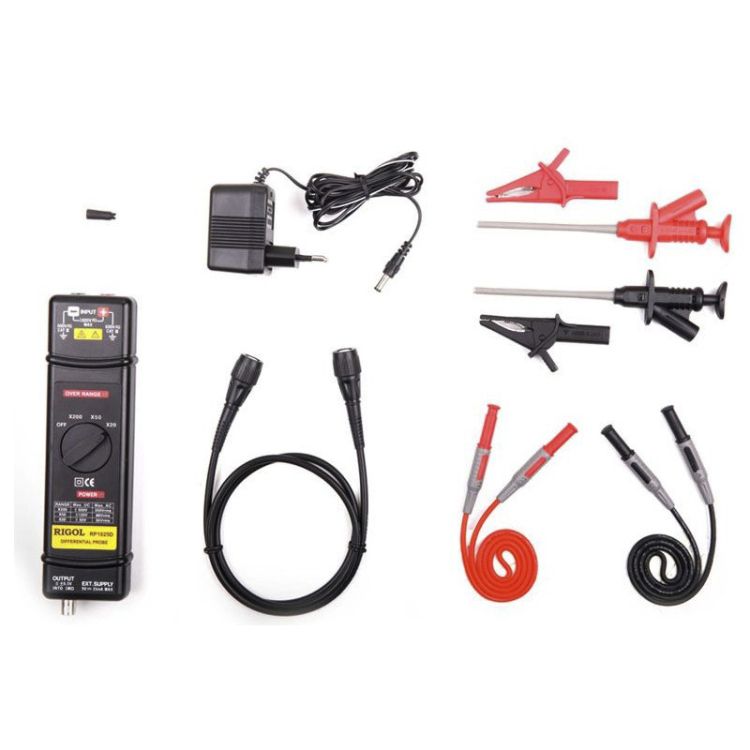

Package contents
- 1x User manual in Chinese and English
- 1x AC power adapter that meets the destination country's standard
- 1x Dual-BNC coaxial cable 50Ω impedance RG58C UL 100cm
- 2x Dual-banana connector silicone cable UL 6KV 18AWG 60cm (Red: 1; Black: 1)
- 2x HV IC hook UL 1000V CAT III (Red: 1; Black: 1)
- 2x HV alligator connector UL 1000V CAT II, 10A (Red: 1; Black: 1)
Link
RP1000D-series user guide (pdf)
