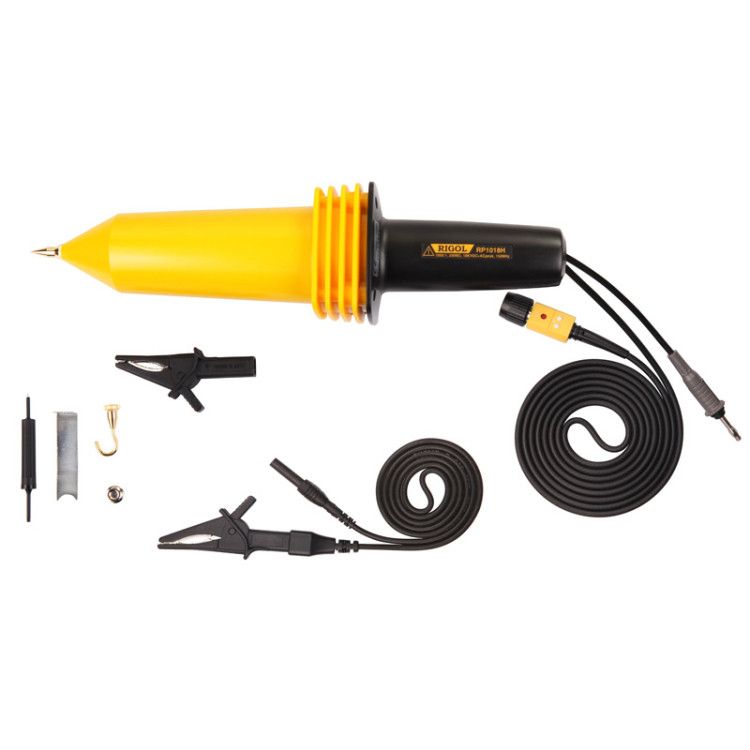

Rigol RP1018H - 100MHz 18kV 1000:1 Passive general-purpose high-voltage probe. Compatible with all Rigol and other manufacturers' oscilloscopes.

1090,59 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

RIGOL RP1010H Passive high-voltage probe, 100 MHz bandwidth, 18 kV maximum DC voltage, attenuation ratio 1000:1.

RP1010H is compatible with all RIGOL oscilloscopes such as DHO900, DHO800, DHO4000, DHO1000, DS70000, DS8000-R, MSO8000/A, MSO/DS7000, MSO5000 and DS1000Z/-E.

Features

Model	RP1018H
Division Ratio	1000:1
Input Resistance	200MΩ
Input Capacitor	1.5 PF
Max. Input (DC+AC peak)	18kV CAT II
Max. Input (AC RMS)	12kV CAT II
Pulse Voltage	12kVp-p
Max. Loading Current	90uA
Bandwidth	DC~100MHz
Rise Time	3.5 ns
Signal / Noise	> 60dB at 1kHz ; > 50dB at 1MHz
DCV Accuracy	≤ 3% Full Range
ACV Accuracy	≤ 3% at 1 kHz
Temp. Coefficient	≤ 200 PPM / ℃
Compensation Range	10PF ~ 35PF
Safety	Meets EN61010-031 CAT II
Cable Length	2M ± 0.2M
Operation Temperature Range	-10 ~ 55℃
Humidity	85% RH or less (at 35℃)
Storage Temperature Range	-20 ~ 70℃
Color: Handle/Body	Black / Yellow
Weight / Volume	460g / 80(W) x 80(H) x 320(L) mm

Package includes

1x User manual

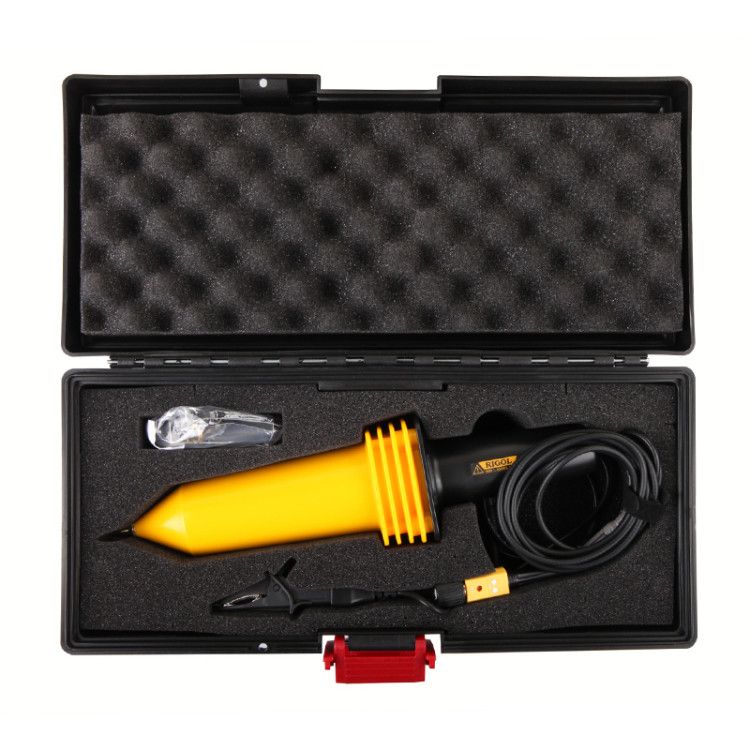

1x Probe storage case
1x Calibration tool
1x Adjustment tool

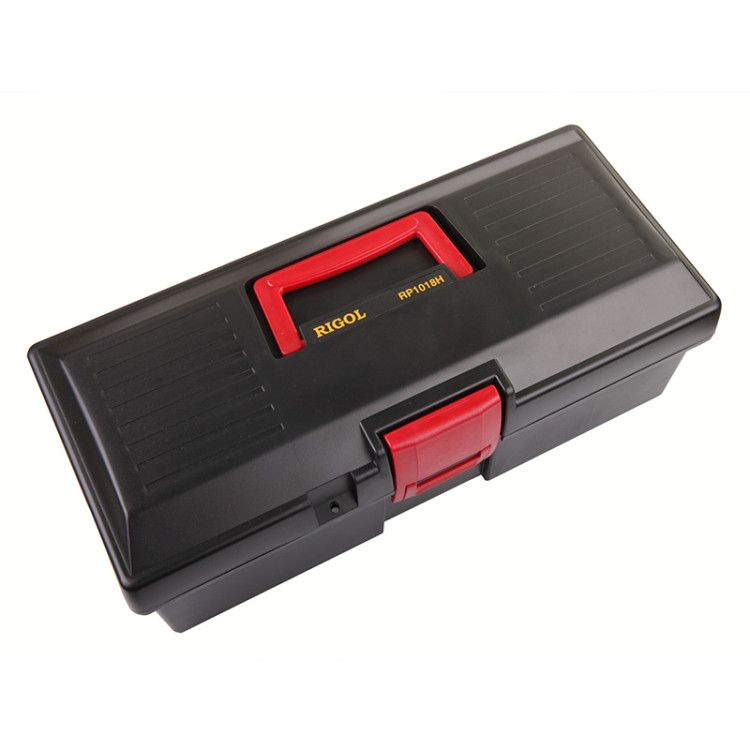

1x Carrying case

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Measuring Instruments By Manufacturer Rigol Accessories Rigol RP1018H 100MHz 18kV HIGH VOLTAGE PASSIVE PROBE
SKU RGRP1018H
Attributes
- Interface BNC
- Bandwidth 100MHz
- Manufacturer's model RP1018H
- Click for more details https://int.rigol.com/products/products/PassiveProbe
- Factory delivery time 3 weeks
