Rigol RP1001C - 200A General-purpose oscilloscope current probe

1040,40 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

The RP1001C current probe allows a standard oscilloscope to display AC and DC current signals up to 100 A peak (70 A RMS). The RP1001C current probe can also be used for AC and DC measurements with a multimeter using a BNC/banana adapter.

The probe is general-purpose and is compatible with, among others, Rigol DS8000-R, MSO8000/A, MSO/DS7000, MSO5000 and DS1000Z/-E series scopes.

RP1001C Technical specifications

Specification	RP1001C
Frequency range (-3 dB)	DC – 300 kHz
Measurement ranges (sensitivity)	10 mV/A, 100 mV/A
Maximum measurable DC current	±100 A (10 mV/A range), 10 A (100 mV/A range)
Maximum AC current (p-p)	200 A (10 mV/A range), 20 A (100 mV/A range)
Maximum RMS current	70.7 A (10 mV/A range), 7 A (100 mV/A range)
Maximum operating voltage	600 V (1200 Vpp AC)
Maximum conductor diameter to be measured	11 mm
Power supply	9 V battery or power adapter

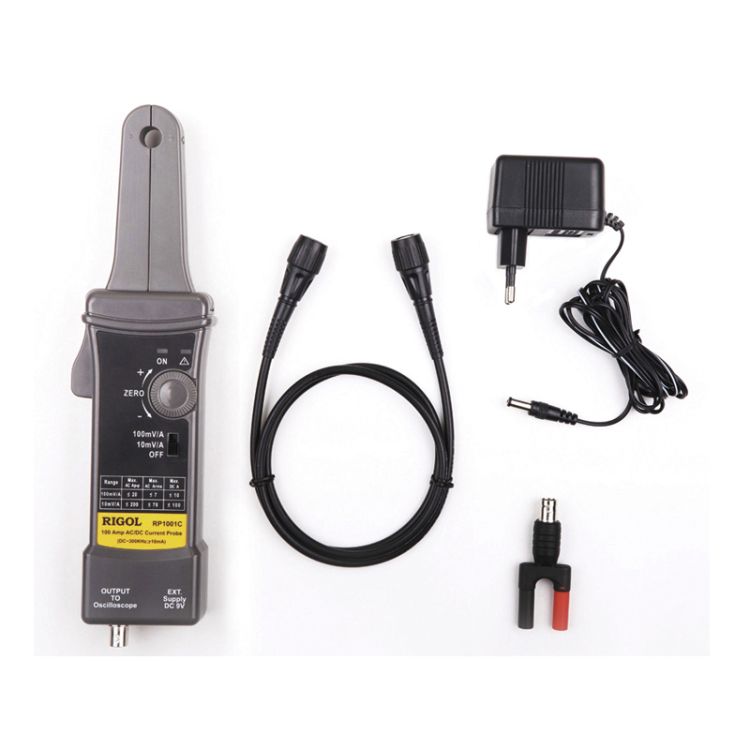

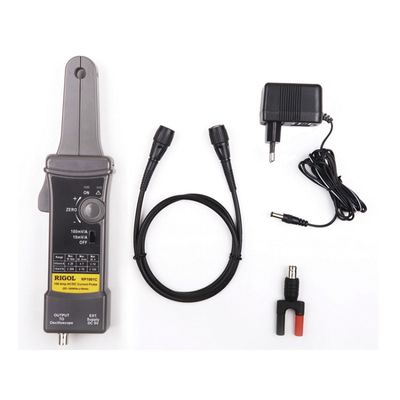

Package contents

1x RP1001C current probe
1x Dual-BNC coaxial cable
1x BNC–banana plug adapter
1x Power adapter complying with the destination country standards

Link

RP1001C User Manual (pdf)

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Measuring Instruments By Manufacturer Rigol Accessories Rigol RP1001C 200A CURRENT PROBE
SKU RGRP1001C
Attributes
- Power Class 200A
- Interface BNC
- Manufacturer's model RP1001C
- Click for more details https://int.rigol.com/products/products/Current_Probes
- Factory delivery time 3 weeks
