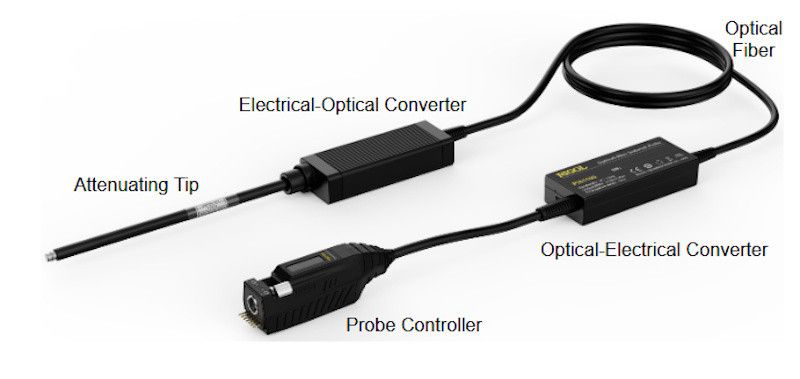

The Rigol PIA1020 is an optically isolated probe that provides excellent common-mode rejection ratio (CMRR) and a high isolation voltage. The probe supports attenuator tips of various sizes, allowing measurement of voltages of different magnitudes.

Key features

• Bandwidth: 1 GHz
• Common-mode voltage: Up to 85 kV_peak
• Isolated voltage range: ±0.01 V – ±2500 V using various attenuator tips
• Rise time: Up to 45 ps
• Output voltage range: ±500 mV

Included accessories

• 1 x TIP-MMCX-50X-1 Attenuating tip
• 1 x TIP-MCX-2000X-1 Attenuating tip
• 5 x MCX adapters (2.54mm spacing)
• 5 x MCX adapters (5.08mm spacing)
• 1 x MMCX coaxial cable
• 1 x MCX coaxial cable
• 1 x Carrying case
• 1 x Probe mount

Links

• PIA1020 User Manual (pdf)
