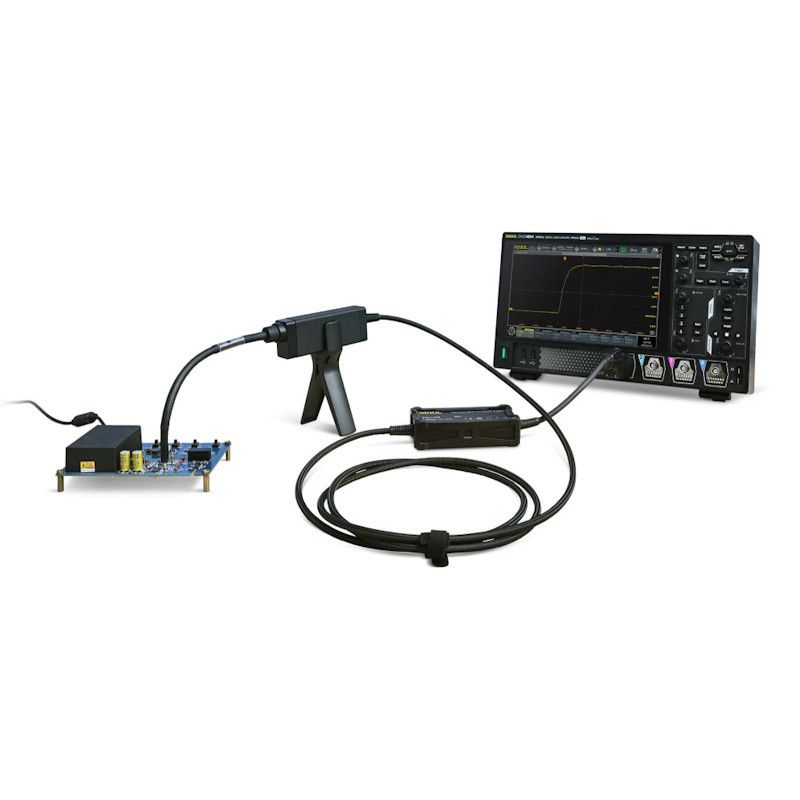

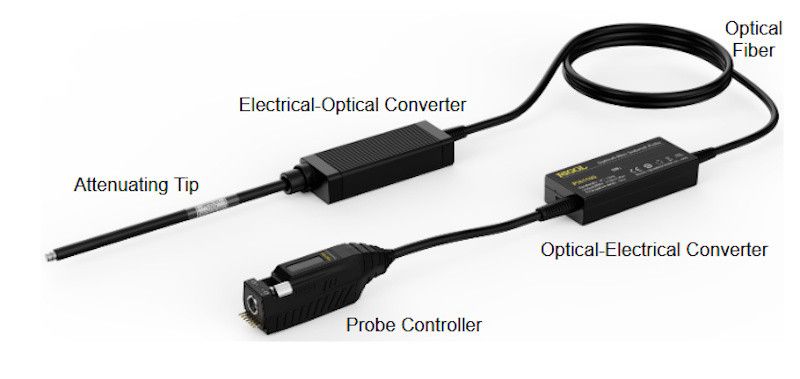

Rigol PIA1050 is an optically isolated probe head that offers excellent common-mode rejection ratio (CMRR) and high isolation voltage. The probe head supports attenuation tips of various sizes, enabling measurement of voltages of different magnitudes.

Main features

• Bandwidth: 500 MHz
• Common-mode voltage: Up to 85 kV_peak
• Isolated voltage range: ±0.01 V – ±2500 V using various attenuation tips
• Rise time: Up to 700 ps
• Output voltage range: ±500 mV

Included accessories

• 1 x TIP-MMCX-50X-05 attenuating tip
• 1 x TIP-MCX-2000X-05 attenuating tip
• 5 x MCX adapters (2.54 mm pitch)
• 5 x MCX adapters (5.08 mm pitch)
• 1 x MMCX coaxial cable
• 1 x MCX coaxial cable
• 1 x Carrying case
• 1 x Probe head stand

Links

• PIA1050 User Manual (pdf)
