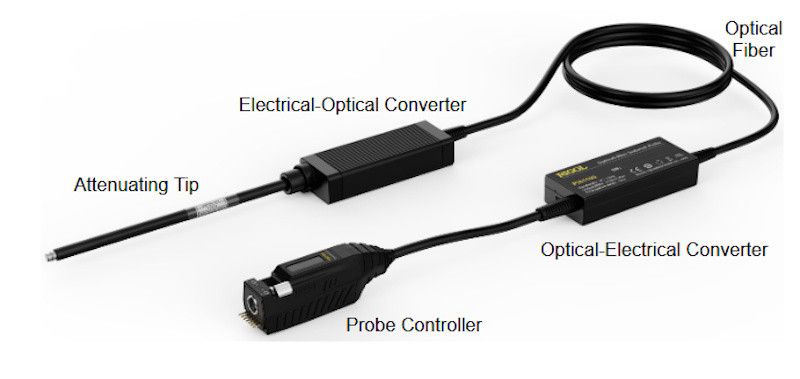

The Rigol PIA1020 is an optically isolated probe head that offers an excellent common-mode rejection ratio (CMRR) and a high isolation voltage. The probe head supports various sizes of attenuation connectors, allowing measurement of voltages of different magnitudes.

Main features

• Bandwidth: 200 MHz
• Common-mode voltage: Up to 85 kV_peak
• Isolated voltage range: ±0.01 V – ±2500 V with various attenuation connectors
• Rise time: Up to 1.75 ns
• Output voltage range: ±1.25 V

Included accessories

• TIP-MMCX-20X-02 attenuation connector
• 5 × MCX adapters (2.54 mm pitch)
• 5 × MCX adapters (5.08 mm pitch)
• MMCX coaxial cable
• MCX coaxial cable
• Carrying case
• Probe holder
