Rigol PHA2150 200MHz HI-VOLTAGE DIFFERENTIAL PROBE

Name: Rigol PHA2150 200MHz HI-VOLTAGE DIFFERENTIAL PROBE
Brand: Rigol
SKU: RGPHA2150
Price: 1750.73 EUR
Availability: InStock

Temporarily out of stock

SKU#: RGPHA2150

Rigol PHA2150 200MHz HI-VOLTAGE DIFFERENTIAL PROBE

Temporarily out of stock

SKU#: RGPHA2150

Rigol PHA2150 - 200MHz 1,5KV general-purpose high-voltage differential probe

1750,73 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

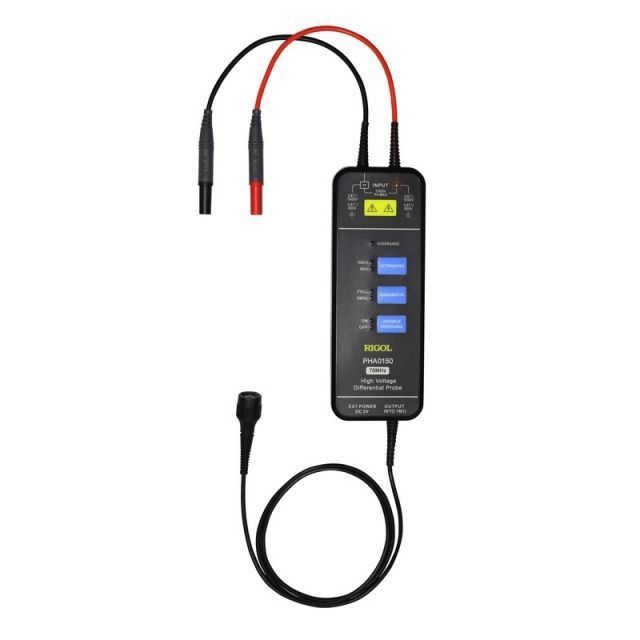

The Rigol PHA series high-voltage differential probe heads are designed to measure large voltage differences between two points safely and accurately. They do not measure voltage only relative to earth like ordinary probes, but can measure voltage directly between two energized points.

Compatible with, among others, Rigol DHO900, DHO800, DHO4000, DHO1000, DS70000, DS8000-R, MSO8000/A, MSO/DS7000, MSO5000 and DS1000Z/-E series oscilloscopes.

PHA2150 Technical Specifications

Characteristic	PHA2150
Bandwidth (-3 dB)	50X: 160 MHz 500X: 200 MHz
Rise Time	50X: ≤2.4 ns (Typical ≤2.2 ns) 500X: ≤2 ns (Typical ≤1.8 ns)
Accuracy	±2%
Range (Attenuation)	50X / 500X
Maximum Measurable Differential Voltage (DC + peak AC)	50X: ±150 V 500X: ±1500 V
Common Mode Voltage (DC + peak AC)	±1500 V
Maximum Input Voltage-to-Earth (Vrms)	600 V CAT III 1000 V CAT II
Input Impedance	5MΩ ±1% (each input to ground) 10MΩ ±1% (between differential inputs)
Input Capacitance	<4 pF (each input to ground) <2 pF (between differential inputs)
CMRR (Common Mode Rejection Ratio)	DC: >80 dB 100 kHz: >60 dB 1 MHz: >50 dB 3.2 MHz: >30 dB 50 MHz: >26 dB
Input Referred Noise (Vrms)	50X: <50 mV 500X: <300 mV
Overrange Voltage Threshold Indicator	50X: 153 V ±3 V 500X: 1530 V ±30 V
Delay	16 ns
Bandwidth Limit (5 MHz)	≥-3 dB @ 5 MHz
Overrange Indicator (Red)	Yes
Audible Overrange Alarm	Yes (ON/Off switch)
Auto Save	Yes
Output Impedance	50 Ω
Safety Standards	EN61010-1:2010
EMC Standards	EN61326-1:2013; EN61000-3-3:2013; EN61000-3-2:2006+A1:2009+A2:2009

Package Includes

1x User manual in Chinese and English
1x AC power adapter that meets the destination country standard
1x Dual-BNC coaxial cable, 50Ω impedance, RG58C UL, 100 cm
2x High-voltage dual-banana connector with silicone cable, UL 20KV, 16AWG, 60 cm
- 1x Red
- 1x Black
2x High-voltage IC hook, maximum 6500V (DC+AC p-p)
- 1x Red
- 1x Black
2x High-voltage alligator clip, UL 1000V CAT II, 10A
- 1x Red
- 1x Black
2x Hook tip with safety contact, UL 1000V, CAT III
- 1x Red
- 1x Black

Link

PHA series User Manual (pdf)

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Measuring Instruments By Manufacturer Rigol Accessories Rigol PHA2150 200MHz HI-VOLTAGE DIFFERENTIAL PROBE
SKU RGPHA2150
Attributes
- Interface BNC
- Bandwidth 200MHz
- Manufacturer's model PHA2150
- Click for more details https://alc-sh-wwwdownload.oss-cn-shanghai.aliyuncs.com/en/Manual/Probe/Active%20High%20Voltage%20Diff%20Probes/PHA0150_PHA1150_PHA2150_UserGuide_CN%26EN.pdf
- Factory delivery time 3 weeks
