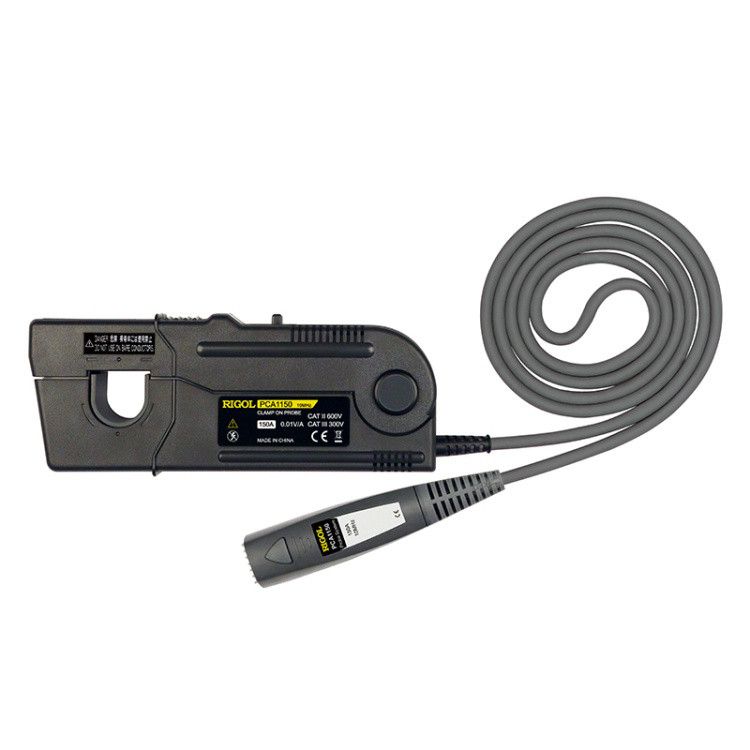

Rigol PCA1150 150A 10MHz CURRENT PROBE

Name: Rigol PCA1150 150A 10MHz CURRENT PROBE
Brand: Rigol
SKU: RGPCA1150
Price: 7398.22 EUR
Availability: InStock

Temporarily out of stock

SKU#: RGPCA1150

Rigol PCA1150 150A 10MHz CURRENT PROBE

Temporarily out of stock

SKU#: RGPCA1150

Rigol PCA1150 - 150A 10MHz General-purpose current probe for conductors with a max 20mm diameter. Compatible with, e.g., Rigol DS8000-R, MSO8000/A and MSO/DS7000 series oscilloscopes.

7398,22 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

The PCA1150 current probe allows an oscilloscope to display AC and DC current signals up to a peak of 300 A. When the probe is clamped around the conductor under test, you can easily capture current waveforms.

The probe is compatible with, among others, Rigol DS8000-R, MSO8000/A and MSO/DS7000 series oscilloscopes.

PCA1150 Technical specifications

Feature	PCA1150
Bandwidth (-3 dB)	DC - 10 MHz
Maximum continuous current	150 A
Maximum peak current	300 A peak, non-continuous; 500 A peak, pulse duration ≤30 μs
Gain	0.01 V/A
Amplitude accuracy	±1.0% of reading ±1 mV, ≤150 A; ±2.0% of reading, 150 A - 300 A peak (DC and 45 Hz - 66 Hz)
Noise	≤25 mArms (20 MHz bandwidth)
Maximum rated power	8.5 VA
Operating environment	Indoor, altitude up to 2000 m, pollution degree 2
Maximum conductor diameter	max. 20 mm
Output	BNC
Cable length	2 m
Power supply	RP1000P power supply
Operating temperature	0°C - 40°C

Package contents

1x User manual (Chinese and English)
1x PCA1150 current probe

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Measuring Instruments By Manufacturer Rigol Accessories Rigol PCA1150 150A 10MHz CURRENT PROBE
SKU RGPCA1150
Attributes
- Power Class 150A
- Interface BNC
- Bandwidth 10MHz
- Weight 500g
- Manufacturer's model PCA1150
- Click for more details https://int.rigol.com/products/products/Current_Probes
- Factory delivery time 3 weeks
- Extended warranty 1 year
