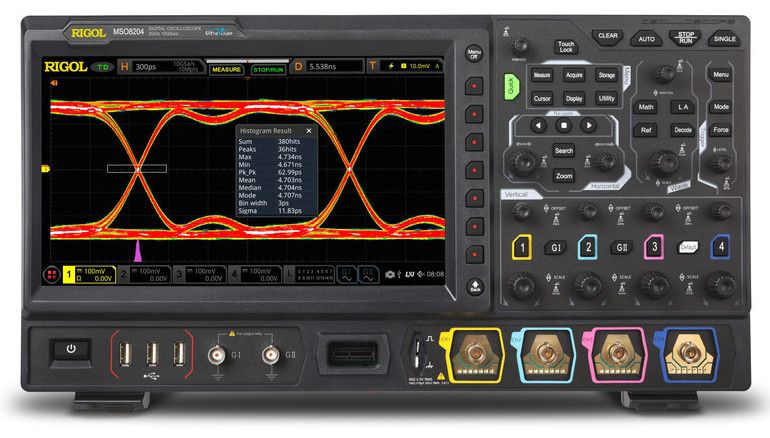

Rigol MSO8000 series is based on Rigol's self-developed Phoenix chipset and the UltraVision II platform. The high bandwidth of the MSO8000 series enables analysis of various high-frequency phenomena and systems.

Analysis of fast digital systems is eased by the oscilloscope's eye diagram function and jitter analysis features.

In addition to the time domain, the oscilloscope also allows versatile inspection of the frequency spectrum with the advanced FFT mode. An FFT covering the entire oscilloscope bandwidth can be calculated even from 1Mpts waveform data and it supports automatic detection of up to 15 frequency peaks.

Available as options are, for example, a 16-channel logic analyzer, a 2-channel 200MSa/s signal generator and a real-time eye diagram mode.

Features

• Bandwidth: 2GHz, upgradable to 3GHz
• 4 analog channels
• Up to 10 GSa/s real-time sampling rate
• Memory depth: 500 Mpts
• High waveform capture rate 600 000 wfm/s
• Up to 450 000 frames of hardware real-time, non-stop waveform capture and playback
• Independent search, navigation buttons and event database
• 10.1 inch capacitive multi-touch display
• Multiple interfaces available: USB HOST and DEVICE, LAN (LXI), HDMI, TRIG OUT and USB-GPIB

Comprehensive options in functionality and performance. See the manufacturer's site for a more detailed list.

Rigol MSO8000 Series Oscilloscopes Comparison Table

Delivery includes

• MSO 8204A oscilloscope
• Two low impedance RP6150A probes
• Four high impedance RP3500A probes
• Front panel protective cover MSO0800-FPC
• Power cord
• USB cable

User manuals

• MSO8000 Datasheet (in English)
• MSO8000 Quick Guide (in English)
• MSO8000 User Guide (in English)
• MSOO800 Programming Guide (in English)
• MSO8000 Open Source Acknowledgment (in English)
