Features

• Analog bandwidth: 800 MHz (1–2 channels), 400 MHz (all channels)
• Analog bandwidth (1 MΩ): 500 MHz (1–2 channels), 400 MHz (all channels)
• 4 analog channels
• 16 digital channels (requires logic analyzer head)
• Vertical resolution: 12 bits
• Rise time (50 Ω, 10–90 %): typically 437 ps
• Real-time sample rate: up to 4 GSa/s (1 channel), 2 GSa/s (2 channels), 1 GSa/s (all channels)
• Standard memory depth: up to 100 Mpts (1 channel), 50 Mpts (2 channels), 25 Mpts (4 channels)
• Optional memory depth: up to 500 Mpts (1 channel), 250 Mpts (2 channels), 125 Mpts (4 channels)
• Waveform capture rate: up to 1 000 000 wfms/s (fast persistence mode), 30 000 wfms/s (vector mode)
• Hardware real-time waveform record and playback: up to 500 000 frames
• Input impedance: 50 Ω ±1 % or 1 MΩ ±1 %
• Optional function/arbitrary waveform generator: 2 channels, 100 MHz or 50 MHz, 1 GSa/s
• Bode plot function: sweep range 10 Hz – 30 MHz
• 7-inch capacitive multi-touch display, resolution 1024 × 600

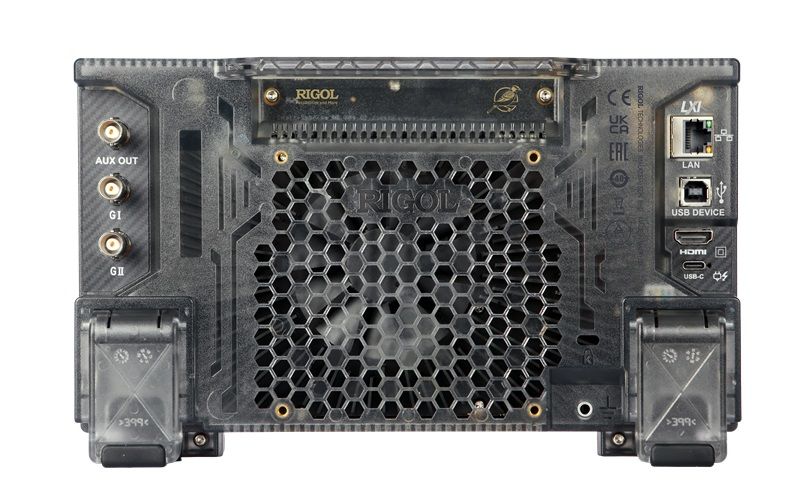

• Interfaces: HDMI, LAN (100M), USB 2.0 Host and Device
• Programming support: SCPI commands

Rigol MHO900 Series Oscilloscopes Comparison Table

Package includes

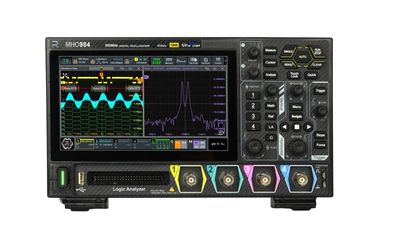

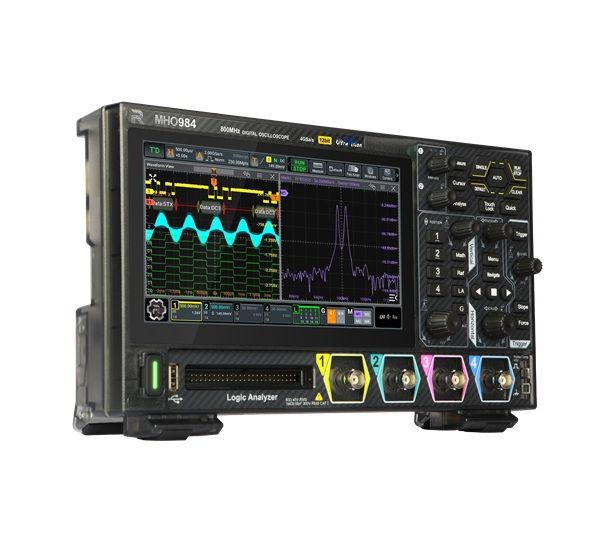

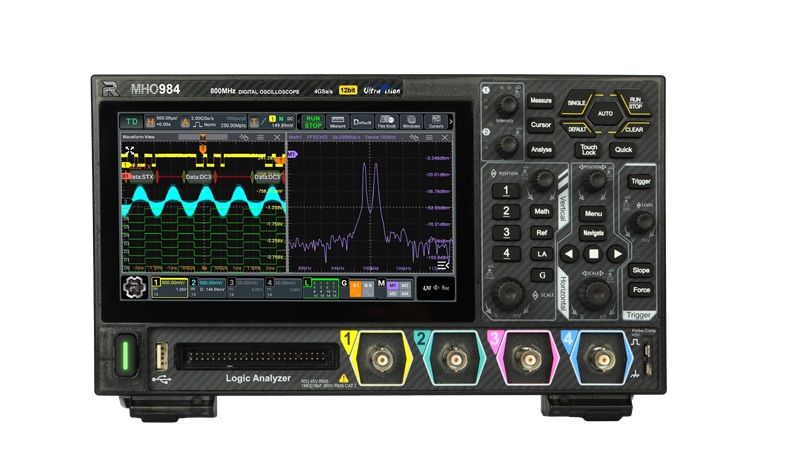

• MHO984 oscilloscope
• Power supply
• Grounding cable
• USB cable
• 4 x passive probes (RP3500A, 500 MHz)
