Features

• Based on RIGOL's new, proprietary Centaurus technology platform
• 12-bit resolution in all series (16-bit in high-resolution mode)
• Max. 1 GHz bandwidth, 8 analog channels and 1 external trigger channel
• MHO models standard configuration includes 16 digital channels (requires purchase of the logic analyzer probe)
• Real-time sampling rate: up to 4 GSa/s
• Max. memory depth 500 Mpts
• Vertical sensitivity up to 100 μV/div
• Maximum waveform capture rate 1 000 000 wfms/s in fast acquisition mode
• Arbitrary Waveform/Function Generator (AFG) (only MHO5054 and MHO5104), power analysis, histogram and digital signal analysis (MHO series only), Bode plot (only MHO5054 and MHO5104) and protocol decoding
• Search and navigation function helps users quickly find signals with anomalies and locate them precisely
• 256-level intensity grading display with digital real-time persistence
• 10.1 inch 1280*800 high-definition touchscreen
• Standard configuration of USB Device-, USB Host-, LAN- and HDMI interfaces in all series
• Battery-powered, convenient to charge anytime and anywhere, providing excellent portability for measurement
• Online update capability
• Standard configuration includes an optical-encoder control knob in all series to improve device lifetime

Rigol MHO5000 Series Oscilloscopes Comparison Table

Package includes

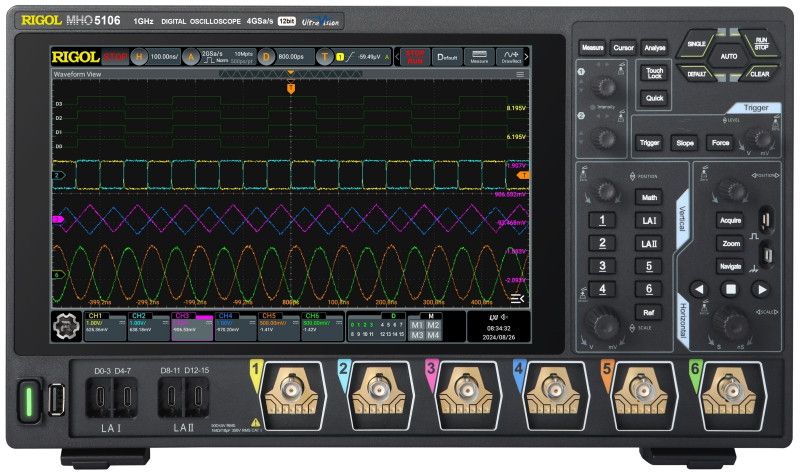

• MHO5106 oscilloscope
• Six high-impedance RP3500A probes
• Power cord
• USB cable

Note! 16-channel logic probe kit sold separately (PLA3204).
