Features

• Based on RIGOL's new, self-developed Centaurus technology platform
• 12-bit resolution across all series (16-bit in high-resolution mode)
• Max. 1 GHz bandwidth, 8 analog channels and 1 external trigger channel
• MHO models come standard with 16 digital channels (requires purchase of the logic analyzer probe)
• Real-time sampling rate: up to 4 GSa/s
• Max. memory depth 500 Mpts
• Vertical sensitivity up to 100 μV/div
• Maximum waveform capture rate 1 000 000 wfms/s in fast capture mode
• Arbitrary Waveform/Function Generator (AFG) (MHO5054 and MHO5104 only), power analysis, histogram and digital signal analysis (MHO series only), Bode plot (MHO5054 and MHO5104 only) and protocol decoding
• Search and navigation function helps users quickly find signals with anomalies and pinpoint them accurately
• 256-level intensity grading display with digital real-time persistence technology
• 10.1-inch 1280*800 HD touchscreen
• Standard USB Device, USB Host, LAN and HDMI interfaces across all series
• Battery-powered, convenient to charge anywhere and anytime, providing excellent measurement portability
• Online update capability
• Optical encoder knob standard across all series to improve device lifespan

Rigol MHO5000 Series Oscilloscopes Comparison Table

Package includes

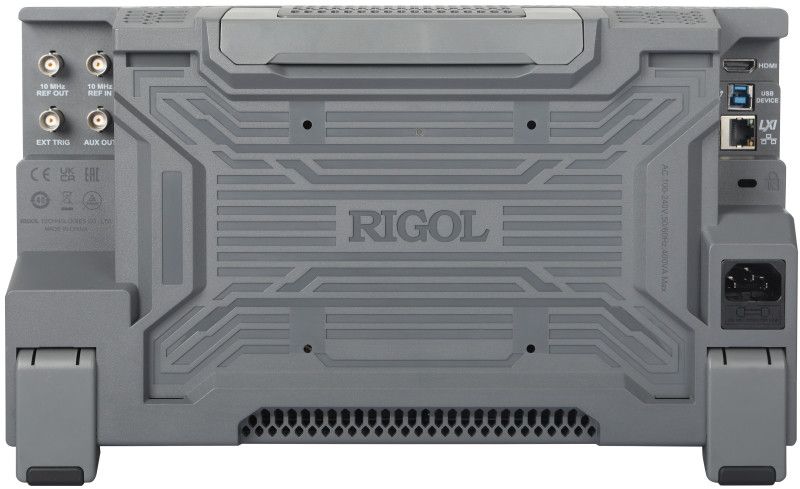

• MHO5104 oscilloscope
• Four high impedance RP3500A probes
• Power cord
• USB cable

Note! 16-channel logic probe kit is sold separately (PLA3204).
