Features

• Based on RIGOL’s new, self-developed Centaurus technology platform
• 12-bit vertical resolution (up to 16-bit in high-resolution mode)
• Bandwidth: up to 200 MHz
• 4 analog channels and 1 external trigger channel
• Standard configuration includes 16 digital channels (requires purchase of logic analyzer probe)
• Real-time sampling rate: up to 2 GSa/s
• Memory depth: up to 500 Mpts (half channels), 250 Mpts (full channel count)
• Vertical sensitivity up to 200 μV/div
• Waveform capture rate: up to 1 000 000 wfms/s (Record mode), 200 000 wfms/s (Vector mode)
• Peak detect capability: pulses as short as 500 ps
• Comprehensive measurement functions: AFG (optional), power analysis, histogram, digital signal analysis, Bode plot, protocol decodings
• Search and navigation function helps locate anomalous signals quickly
• 256-level intensity grading display, digital real-time persistence technique
• 10.1-inch capacitive multi-touch display, resolution 1280×800
• New Flex control knob provides a smooth user experience
• USB Device, USB Host, LAN, and HDMI interfaces included as standard
• Ready support for serial protocols such as I2C, SPI and RS232/UART
• Online update capability
• Optical encoder potentiometers enhance device longevity
• Battery operation possible with separately sold battery pack option
• Available: 2-ch 50 MHz waveform generator upgrade option

Rigol MHO2000 Series Oscilloscopes Comparison Table

What's included

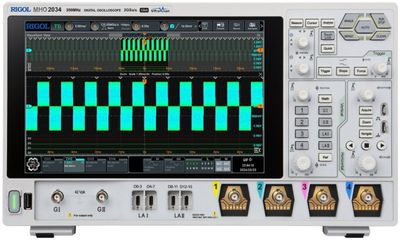

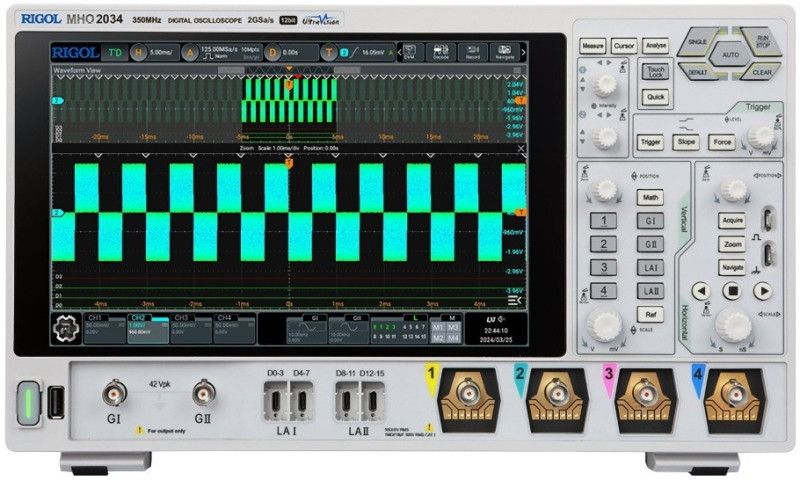

• MHO2024 oscilloscope
• 4× PVP2350 passive probes
• AC/DC power supply
• USB cable

Note! The 16-channel logic analyzer logic probe (PLA3204) is sold separately.
