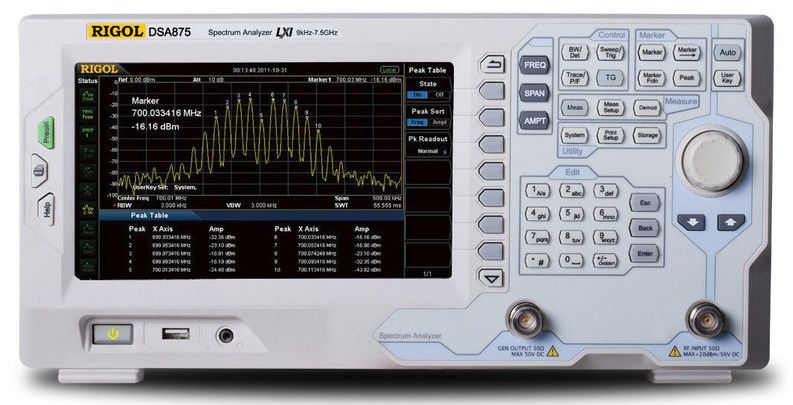

Rigol DSA800-series spectrum analyzers offer performance and accuracy in a compact and cost-effective package. The DSA800-series analyzers use fully digital IF technology, which improves reliability and reduces measurement errors. The TG models are additionally equipped with a tracking signal generator that enables measurement of the frequency response of the system under test.

Features

• Frequency range: 9 kHz...7.5 GHz
• Sweep time: 1 ms ... 1500 s
• Displayed average noise level (DANL): up to -161 dBm (typical) (with preamplifier)
• Phase noise: <-98 dBc/Hz (typical)
• Min. resolution bandwidth (RBW): 10 Hz
• Tracking signal generator
• Signal generator output power: -40 dBm...0 dBm
• Versatile interfaces: USB, LAN (LXI), GPIB (option)
• 8-inch WVGA (800x480) display

Accessories and options

• EMI filter and quasi-peak detector EMI-DSA800
• Preamplifier PA-DSA832
• Advanced Measurement Kit AMK-DSA800
• VSWR bridge for filter and antenna measurements VSWR-DSA800
• PC software Ultra Spectrum
• USB-GPIB converter
• Near-field antenna NFP-3

The full list of options and accessories can be found in the DSA800 accessories list

Delivery includes

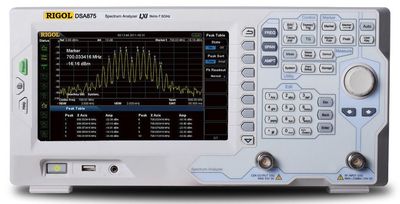

• DSA875 Spectrum Analyzer
• Quick Guide
• Power cord

Links

• DSA800 Quick Guide (English)
• DSA800 User Guide (English)
• DSA800 Accessories List (English)
• DSA800 Datasheet (English)
• DSA800 Programming Guide (English)
