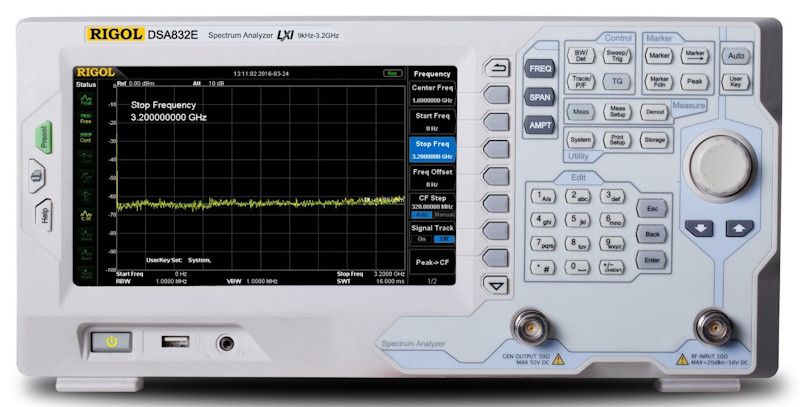

Rigol DSA832E-TG is a compact and lightweight spectrum analyzer that delivers top-tier performance for portable applications. The use of digital IF (intermediate frequency) technology ensures reliability and performance that meet the most demanding RF applications. The Rigol DSA832E-TG spectrum analyzer's very large display (20,3 cm / 8") offers 800x480 pixel resolution, providing an excellent overview of all its convenient functions such as Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions allow the analyzer to acquire signals and adjust parameters automatically, compared to the manual process required by traditional analyzers. Rigol spectrum analyzers feature a versatile and user-friendly interface that provides numerous functions for every task. Menu navigation is highly intuitive, and all functions and parameters are easy to find thanks to the graphical user interface.

Features

• Frequency range 9 kHz – 3,2 GHz
• Built-in tracking generator
• Min. -148 dBm Displayed average noise level DANL (typical)
• Min. -90 dBc / Hz @ 10 kHz offset phase noise
• Level measurement uncertainty <1,0 dB
• 10 Hz minimum resolution bandwidth (RBW)
• 8-inch TFT LCD display
• Full connectivity: LAN (LXI), USB Host & Device, GPIB (Option)
• AM/FM demodulations

NOTE! Trial options preinstalled on the device (valid for 30 hours only): AMK-DSA800, EMI-DSA800 and VSWR-DSA800

Accessories and options

• EMI filter and quasi-peak detector EMI-DSA800
• Preamplifier PA-DSA832
• Advanced Measurement Kit AMK-DSA800
• VSWR bridge for filter and antenna measurements VSWR-DSA800
• PC software Ultra Spectrum
• USB-GPIB converter
• Near-field probe NFP-3

The full list of options and accessories can be found in the DSA800 accessories list

Package includes

• DSA832E-TG Spectrum Analyzer
• Quick guide
• Power cord
