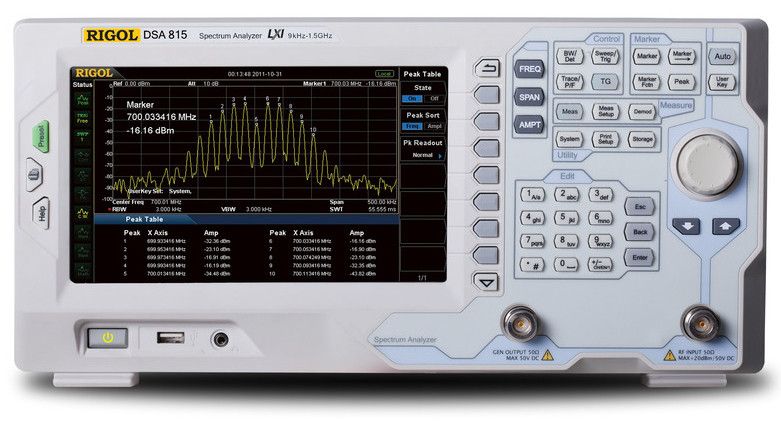

Rigol DSA800-series spectrum analyzers provide performance and accuracy in a compact and cost-effective package. DSA800-series analyzers use a fully digital IF technique that improves reliability and reduces measurement errors. TG models are additionally equipped with a tracking signal generator, which allows measurement of the tested system's frequency response.

Features

• Frequency range: 9 kHz...1.5 GHz
• Sweep time: 10ms ... 1500s
• Displayed average noise level (DANL): up to -155 dBm (typical) (with preamplifier)
• Phase noise: <-80 dBc/Hz (typical)
• Min. resolution bandwidth (RBW): 10 Hz
• Tracking signal generator
• Signal generator output power: -20dBm...0dBm
• Versatile interfaces: USB, LAN (LXI), GPIB (option)
• 8-inch WVGA (800x480) display

Accessories and options

• EMI filter and quasi-peak detector EMI-DSA800
• Preamplifier PA-DSA832
• Advanced Measurement Kit AMK-DSA800
• VSWR bridge for filter and antenna measurements VSWR-DSA800
• PC software Ultra Spectrum
• USB-GPIB converter
• Near-field antenna NFP-3

The full list of options and accessories can be found in the DSA800 accessories list

Delivery includes

• DSA815 Spectrum Analyzer
• Quick guide
• Power cord
