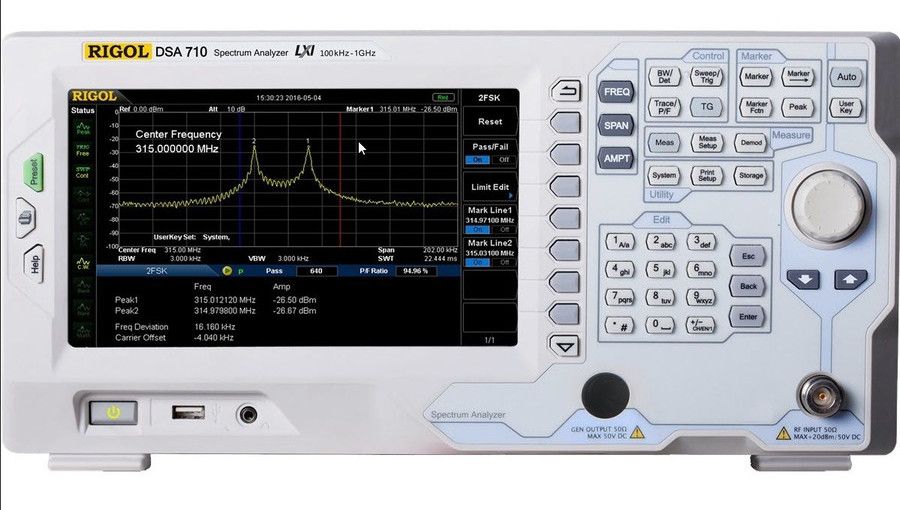

Rigolin DSA700-series spectrum analyzers deliver performance and accuracy in a compact and cost-effective package. The DSA700-series analyzers utilize fully digital IF technology, which improves reliability and reduces measurement errors.

Features

• Frequency range: 9 kHz...1 GHz
• Sweep time: 10 ms ... 1000 s
• Displayed average noise level (DANL): up to -130 dBm (typical) (with preamplifier)
• Phase noise: <-80 dBc/Hz (typical)
• Min. resolution bandwidth (RBW): 100 Hz
• Versatile interfaces: USB, LAN (LXI), GPIB (option)
• 8-inch WVGA (800x480) display

Accessories and options

• EMI filter and quasi-peak detector EMI-DSA800
• Advanced Measurement Kit AMK-DSA800
• PC software Ultra Spectrum
• USB-GPIB converter
• Near-field antenna NFP-3

The full list of options and accessories can be found in the DSA700 accessories list

Delivery includes

• DSA710 Spectrum Analyzer
• Quick Guide
• Power cord

Links

• DSA700 Quick Guide (English)
• DSA700 User Guide (English)
• DSA700 Accessories List (English)
• DSA700 Datasheet (English)
• DSA700 Programming Guide (English)
