Rigol DS1104Z-S Plus OSCILLOSCOPE 100MHZ 4CH +GEN

Name: Rigol DS1104Z-S Plus OSCILLOSCOPE 100MHZ 4CH +GEN
Brand: Rigol
SKU: RGDS1104ZSPLUS
Price: 776.84 EUR
Availability: InStock

In stock under 5 pcs

SKU#: RGDS1104ZSPLUS

In stock under 5 pcs

SKU#: RGDS1104ZSPLUS

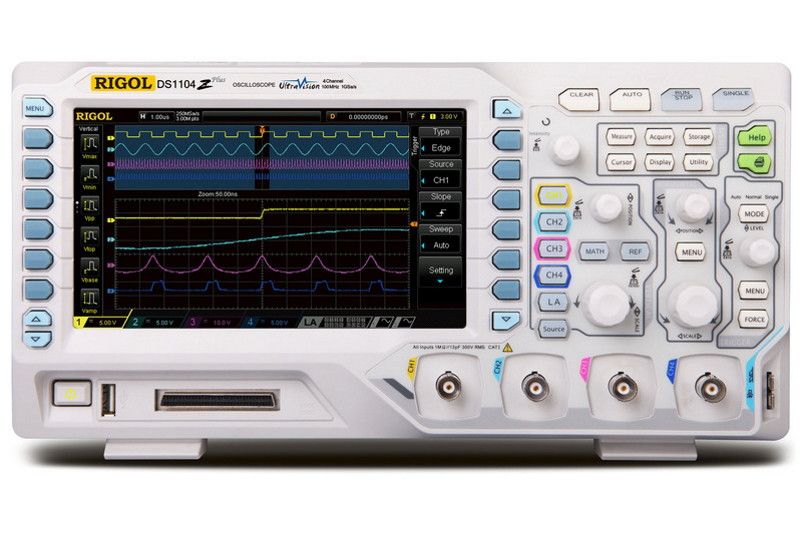

Rigol DS1104Z-S Plus - four-channel, 100 MHz MSO-Ready oscilloscope with a two-channel signal generator.

776,84 €

In stock

Add a comment about the product

Product Description

Analog channel bandwidth: 100 MHz
4 analog channels, 16 digital channels (available only on DS1000Z Plus unit upgraded with the MSO option).
Real-time sample rate up to 1 GSa/s
Memory depth up to 24 Mpts
Up to 30,000 wfms/s waveform capture rate
Up to 60,000 frames hardware real-time waveform record and playback functions.
Innovative UltraVision technology
Various trigger and bus decode functions
Low noise floor, vertical scale range: 1 mV/div - 10 V/div.
Built-in two-channel 25 MHz function/arbitrary waveform generator (only in the digital oscilloscope with source channels).
Various interfaces: USB Host & Device, LAN (LXI), AUX.
Compact size, light weight, easy to use
7 inch WVGA (800x480) TFT LCD, intensity-graded color display

Rigol DS1000Z Oscilloscopes comparison table

Model	Channels	Bandwidth	Real-time sample rate	Max. memory depth	Signal generator	Waveform refresh rate
DS1054Z	4	50MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s
DS1074Z PLUS	4 + 16 Digital (Opt)	70MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s
DS1074Z-S PLUS	4 + 16 Digital (Opt)+ARB GEN	70MHz	1GSa/s	24 Mpts	X2	30,000 wfms/s
DS1104Z PLUS	4 + 16 Digital (Opt)	100MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s
DS1104Z-S PLUS	4 + 16 Digital (Opt)+ARB GEN	100MHz	1GSa/s	24 Mpts	X2	30,000 wfms/s
DS1102Z-E	2	100MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s
DS1202Z-E	2	200MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s

Note! BND-DS/MSO1000Z upgrade options preinstalled.

You can also expand to a 16-channel logic analyzer by purchasing the RPL1116 lead set.

Availability In stock
Manufacturer Rigol
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Rigol DS1104Z-S Plus OSCILLOSCOPE 100MHZ 4CH +GEN
SKU RGDS1104ZSPLUS
Attributes
- Channels 4+2
- Bandwidth 100MHz
- Sample memory 24M
- Sampling frequency 1GS/s
- Sample resolution 12bit
- Product family Rigol DS1000Z
- Click for more details https://eu.rigol.com/products/detail/DS1000Z.html
- Factory delivery time 3 weeks
- Instructions for use In English; Finnish available on request (PDF format)
