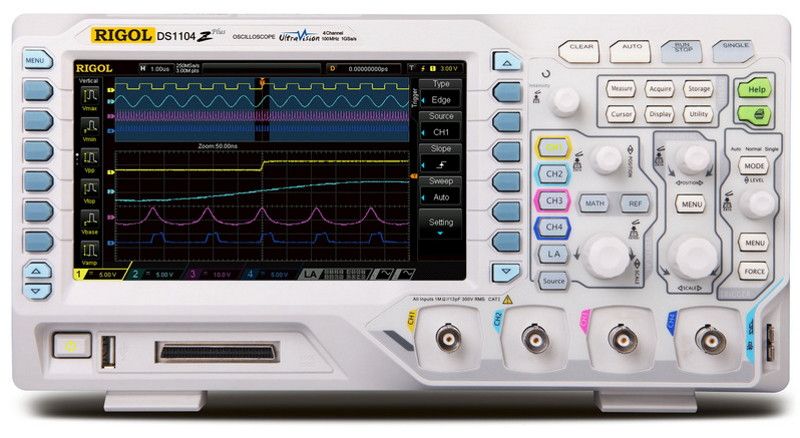

Rigol DS1104Z Plus OSCILLOSCOPE 100MHZ 4CH

Name: Rigol DS1104Z Plus OSCILLOSCOPE 100MHZ 4CH
Brand: Rigol
SKU: RGDS1104ZPLUS
Price: 576.05 EUR
Availability: InStock

out of stock

SKU#: RGDS1104ZPLUS

out of stock

SKU#: RGDS1104ZPLUS

Rigol DS1104Z Plus - four-channel, 100 MHz MSO-Ready oscilloscope.

576,05 €

Out of stock, availability unknown

Add a comment about the product to my order

Product Description

Analog channel bandwidth: 100 MHz
4 analog channels, 16 digital channels (available only on DS1000Z Plus device upgraded with the MSO option).
Real-time sampling rate up to 1 GSa/s
Memory depth up to 24 Mpts
Waveform capture rate up to 30,000 wfms/s
Up to 60,000 frames hardware real-time waveform record and playback functions.
Innovative UltraVision technology
Various trigger and bus decode functions
Low noise floor, vertical scale range: 1 mV/div - 10 V/div.
Various interfaces: USB Host & Device, LAN (LXI), AUX.
Compact size, lightweight, easy to use
7-inch WVGA (800x480) TFT LCD, intensity-graded color display

Rigol DS1000Z Oscilloscopes comparison table

Model	Channels	Bandwidth	Real-time sampling rate	Max. memory depth	Signal generator	Waveform refresh rate
DS1054Z	4	50MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s
DS1074Z PLUS	4 + 16 Digital (Opt)	70MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s
DS1074Z-S PLUS	4 + 16 Digital (Opt)+ARB GEN	70MHz	1GSa/s	24 Mpts	X2	30,000 wfms/s
DS1104Z PLUS	4 + 16 Digital (Opt)	100MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s
DS1104Z-S PLUS	4 + 16 Digital (Opt)+ARB GEN	100MHz	1GSa/s	24 Mpts	X2	30,000 wfms/s
DS1102Z-E	2	100MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s
DS1202Z-E	2	200MHz	1GSa/s	24 Mpts	N/A	30,000 wfms/s

Note! BND-DS/MSO1000Z upgrade options pre-installed.

You can also expand to a 16-channel logic analyzer by purchasing the RPL1116 cable kit.

Availability Out of stock, availability unknown
Manufacturer Rigol
Product path Home Measuring Instruments Electronic Measuring Instruments Oscilloscopes Rigol DS1104Z Plus OSCILLOSCOPE 100MHZ 4CH
SKU RGDS1104ZPLUS
Attributes
- Channels 4
- Bandwidth 100MHz
- Sample memory 24M
- Sampling frequency 1GS/s
- Sample resolution 12bit
- Product family Rigol DS1000Z
- Manufacturer's model DS1104Z Plus
- Click for more details https://eu.rigol.com/products/detail/DS1000Z.html
- Factory delivery time 3 weeks
- Instructions for use In English; Finnish available on request (PDF format)
- Extended warranty 3 years
- Manufacturer's model DS1104Z Plus
- Click for more details https://eu.rigol.com/products/detail/DS1000Z.html
- Factory delivery time 3 weeks
- Instructions for use English; Finnish available on request (PDF format)
- Extended warranty 3 years
