Rigol DP932U POWER SUPPLY 210W 2x32V/3A, 6V/3A

Name: Rigol DP932U POWER SUPPLY 210W 2x32V/3A, 6V/3A
Brand: Rigol
SKU: RGDP932U
Price: 538.40 EUR
Availability: InStock

Temporarily out of stock

SKU#: RGDP932U

Rigol DP932U POWER SUPPLY 210W 2x32V/3A, 6V/3A

Temporarily out of stock

SKU#: RGDP932U

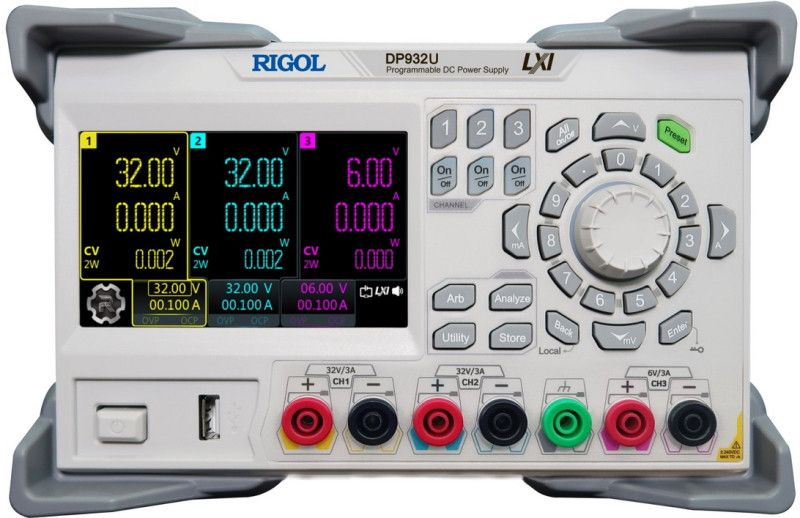

Rigol DP932U - three-channel programmable linear laboratory power supply featuring adjustable 1-CH/2-CH 0-32V/3A and 0-6V/3A.

538,40 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

3 electrically isolated independent channels with a total power of up to 210 W
4.3-inch LCD color touchscreen
Resolution 10mV/1mA
Front-panel safety terminals available in some models
Internal series/parallel connections for CH1 and CH2
Excellent programming/readback accuracy
Transient response time <50 μs
Low output ripple and noise <350 μVrms/2 mVpp
Command processing time <10 ms
Three rack units (3U), 1/2-rack form
Software control
Time sequencing, data logging and analysis
Maximum 512 arbitrary points with dwell time up to 100 ms in the DP932A (1000 ms in the DP932U), various built-in basic waveforms, not available in the DP932E
Over-voltage, over-current and over-temperature protection
Various interfaces available: USB, LAN and Digital I/O

Note! In this model the main differences to the DP932A are mainly resolution and interfaces.

Programming resolution 10mV/1mA, readback resolution: 10mV/1mA, interfaces: USB, LAN, opt-Digital IO.

Rigol DP800 / DP900 DC power supplies comparison table

Model	Output voltage	Output current	Benchtop / Rack	Control
DP811	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Benchtop / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP811A	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Benchtop / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP932E	Ch 1: 0V – 30V Ch 2 : 0V – 30V Ch 3 : 0V – 6V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Benchtop / Rack (Opt)	USB Device, USB Host, LAN, RS232 (Opt), Digital I/O(Opt on E), USB-GPIB (Opt)
DP932A/U	Ch 1: 0V – 32V Ch 2 : 0V – 32V Ch 3 : 0V – 6V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Benchtop / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB
DP821A	Ch 1: 0V – 60V Ch 2 : 0V – 8V Ch 3 : N/A	Ch 1: 1A Ch 2: 10A Ch 3: N/A	Benchtop / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP831	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Benchtop / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP831A	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Benchtop / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP832	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Benchtop / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP832A	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Benchtop / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)

Package includes

DP932U linear laboratory power supply
Power cord
Test leads
USB cable

Manuals

Video

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Power Supplies Laboratory Power Supplies Rigol DP932U POWER SUPPLY 210W 2x32V/3A, 6V/3A
SKU RGDP932U
Attributes
- Voltage class 32V
- Power Class 3A
- Power class 200W
- Product family Rigol DP900
- Weight 9.15kg
- Manufacturer's model DP932U
- Click for more details https://eu.rigol.com/products/DP_detail/DP900.html
- Dimensions 239 x 157 x 419 mm
- Factory delivery time 3 weeks
- Instructions for use In English; Finnish available upon request (PDF format)
- Extended warranty 3 years
