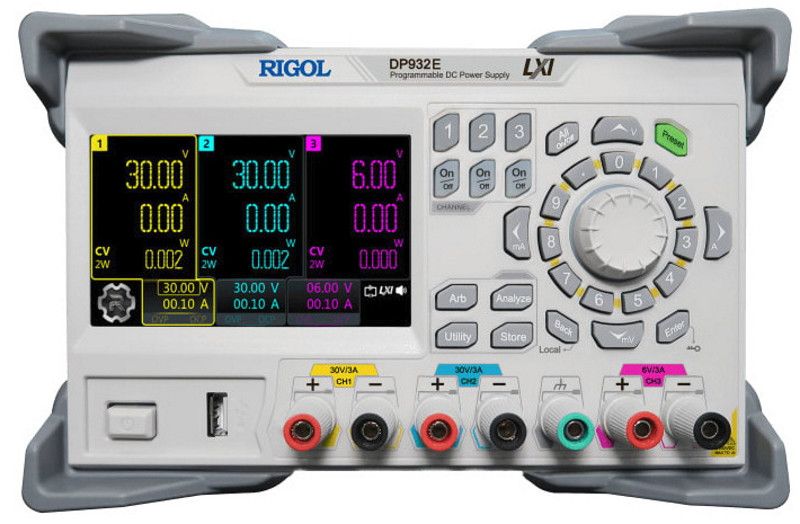

Rigol DP932E 198W POWER SUPPLY 2x 0-30V/3A, 0-6V/3A

Name: Rigol DP932E 198W POWER SUPPLY 2x 0-30V/3A, 0-6V/3A
Brand: Rigol
SKU: RGDP932E
Price: 450.67 EUR
Availability: InStock

In stock under 5 pcs

SKU#: RGDP932E

Rigol DP932E 198W POWER SUPPLY 2x 0-30V/3A, 0-6V/3A

In stock under 5 pcs

SKU#: RGDP932E

Rigol DP932E - three-channel programmable linear laboratory power supply featuring adjustable 1-CH/2-CH 0-30V/3A and 0-6V/3A.

450,67 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

3 electrically isolated independent channels with a total power of up to 198 W
4.3-inch LCD color touchscreen
Resolution: 10mV/10mA
Front-panel safety terminals available on some models
Internal series/parallel connections for CH1 and CH2
Excellent programming/readback accuracy
Transient response time <50 μs
Low output ripple and noise <350 μVrms/2 mVpp
Command handling time <10 ms
Three rack units (3U), 1/2-rack form factor
Software management
Time-based feed, data logging and analysis
Up to 512 random points with dwell time up to 100 ms on the DP932A (1000 ms on DP932U), various built-in basic waveforms, not available on DP932E
Over-voltage, over-current and over-temperature protection
Various interfaces available: USB, LAN and Digital I/O

Note! The main differences between this model and the DP932A/U models are primarily resolution and interfaces.

Programming resolution: 10mV/10mA, readback resolution: 10mV/10mA, interfaces: USB, LAN

Rigol DP800 / DP900 DC Power Supplies Comparison Table

Model	Output Voltage	Output Current	Bench/Rack	Control
DP811	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP811A	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP932E	Ch 1: 0V – 30V Ch 2 : 0V – 30V Ch 3 : 0V – 6V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232 (Opt), Digital I/O(Opt on E), USB-GPIB (Opt)
DP932A/U	Ch 1: 0V – 32V Ch 2 : 0V – 32V Ch 3 : 0V – 6V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB
DP821A	Ch 1: 0V – 60V Ch 2 : 0V – 8V Ch 3 : N/A	Ch 1: 1A Ch 2: 10A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP831	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP831A	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP832	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP832A	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)

Delivery includes

DP932E linear laboratory power supply
Power cord
Test leads
USB cable

Manuals

Video

Product Information

Availability In stock
Manufacturer Rigol
Product path Home campaigns Rigol DP932E 198W POWER SUPPLY 2x 0-30V/3A, 0-6V/3A
SKU RGDP932E
Attributes
- Voltage class 30V
- Power Class 3A
- Power class 200W
- Product family Rigol DP900
- Weight 9.15kg
- Manufacturer's model DP932E
- Click for more details https://eu.rigol.com/products/DP_detail/DP900.html
- Dimensions 239mm x 157mm x 419mm
- Factory delivery time 3 weeks
- Instructions for use English; Finnish available on request (PDF format)
- Extended warranty 3 years
- Weight 9.15kg
- Manufacturer's model DP932E
- Click for more details https:\/\/eu.rigol.com\/products\/DP_detail\/DP900.html
- Dimensions 239mm x 157mm x 419mm
- Factory delivery time 3 weeks
- Instructions for use English, Finnish available on request (PDF format)
- Extended warranty 3 years
