Rigol DP932A POWER SUPPLY 210W 2x32V/3A, 6V/3A

Name: Rigol DP932A POWER SUPPLY 210W 2x32V/3A, 6V/3A
Brand: Rigol
SKU: RGDP932A
Price: 701.55 EUR
Availability: InStock

In stock under 5 pcs

SKU#: RGDP932A

Rigol DP932A POWER SUPPLY 210W 2x32V/3A, 6V/3A

Rigol DP932A POWER SUPPLY 210W 2x32V/3A, 6V/3A

In stock under 5 pcs

SKU#: RGDP932A

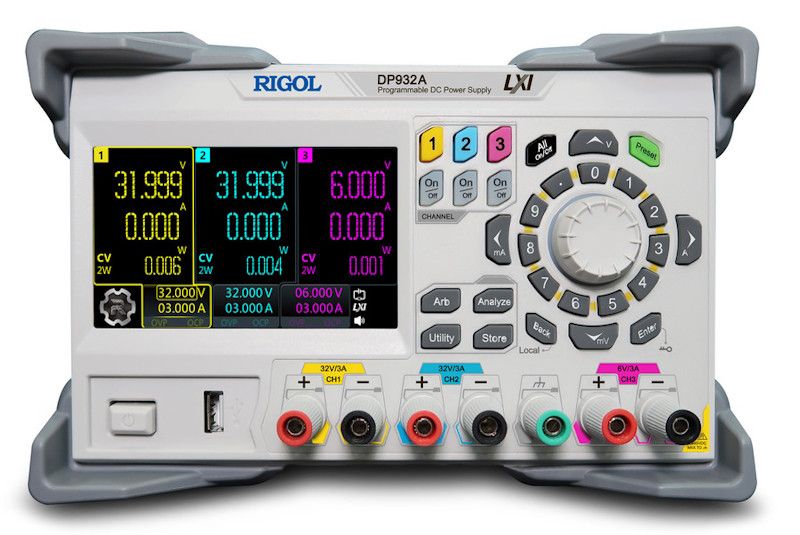

Rigol DP932A - three-channel high-resolution programmable linear laboratory power supply with adjustable 1-CH/2-CH 0-32V/3A and 0-6V/3A.

701,55 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

3 electrically isolated independent channels with a total power of up to 210 W
4.3-inch LCD color touchscreen
Resolution: 1mV/1mA
Front-panel safety terminals available on some models
Internal series/parallel connections for CH1 and CH2
Excellent programming/readback accuracy
Transient response time <50 μs
Low output ripple and noise <350 μVrms/2 mVpp
Command processing time <10 ms
Three rack units (3U), 1/2-rack form factor
Software control
Timed source, data logging and analysis
Up to 512 random points with dwell times up to 100 ms
Various built-in basic waveforms
Overvoltage, overcurrent and overtemperature protection

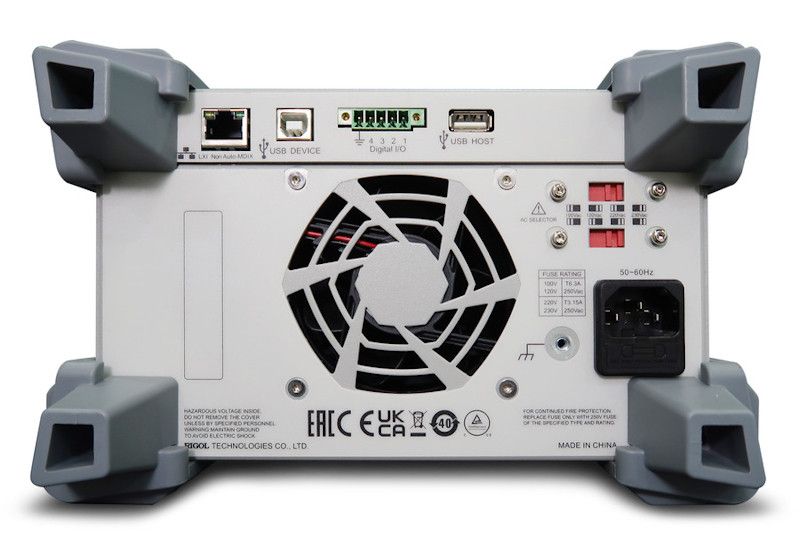

Various interfaces available: USB, LAN and Digital I/O

Note! The difference in this model compared to the DP932U model is mainly resolution and interfaces.

Programming resolution: 1mV/1mA, readback resolution: 0.1mV/0.1mA, interfaces: USB, LAN, Digital IO.

Rigol DP800 / DP900 DC power supplies comparison table

Model	Output voltage	Output current	Bench/Rack	Control
DP811	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP811A	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP932E	Ch 1: 0V – 30V Ch 2 : 0V – 30V Ch 3 : 0V – 6V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232 (Opt), Digital I/O (Opt on E), USB-GPIB (Opt)
DP932A/U	Ch 1: 0V – 32V Ch 2 : 0V – 32V Ch 3 : 0V – 6V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB
DP821A	Ch 1: 0V – 60V Ch 2 : 0V – 8V Ch 3 : N/A	Ch 1: 1A Ch 2: 10A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP831	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP831A	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP832	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP832A	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)

Package includes

DP932E linear laboratory power supply
Power cord
Test leads
USB cable

Manuals

Video

Product Information

Availability In stock
Manufacturer Rigol
Product path Home Power Supplies Laboratory Power Supplies Rigol DP932A POWER SUPPLY 210W 2x32V/3A, 6V/3A
SKU RGDP932A
Attributes
- Voltage class 32V
- Power Class 3A
- Power class 200W
- Product family Rigol DP900
- Weight 9.15kg
- Manufacturer's model DP932A
- Click for more details https://eu.rigol.com/products/DP_detail/DP900.html
- Dimensions 239mm x 157mm x 419mm
- Factory delivery time 3 weeks
- Instructions for use English; Finnish available on request (PDF)
- Extended warranty 3 years

Rigol DP932A POWER SUPPLY 210W 2x32V/3A, 6V/3A
