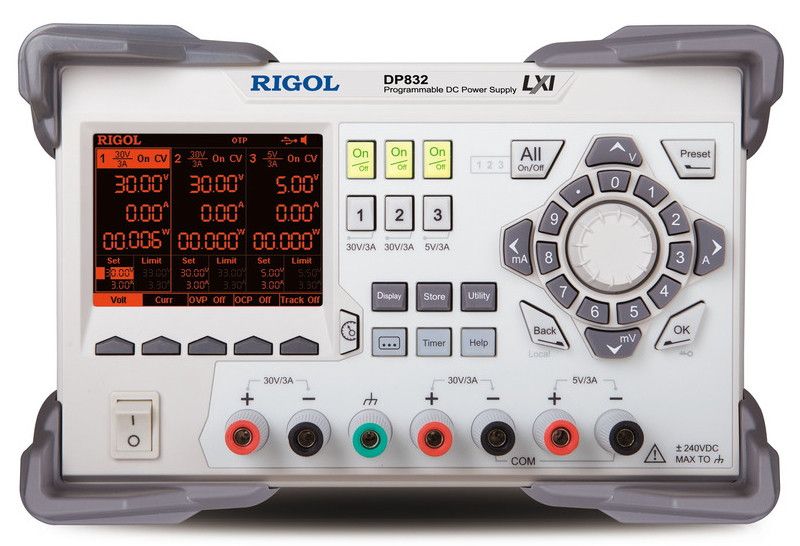

Rigol DP832 POWER SUPPLY 195W 2x 0-30V/3A, 0-5V/3A

Name: Rigol DP832 POWER SUPPLY 195W 2x 0-30V/3A, 0-5V/3A
Brand: Rigol
SKU: RGDP832
Price: 450.54 EUR
Availability: InStock

In stock under 5 pcs

SKU#: RGDP832

In stock under 5 pcs

SKU#: RGDP832

Rigol DP832 - three-channel, programmable linear power supply with adjustable 1-CH/2-CH 0-30V/3A and 0-5V/3A.

450,54 €

In stock

Add a comment about the product

Product Description

DP832: 3 outputs, 30V/3A || 30V/3A, 5V/3A, total power up to 195W
Low ripple and noise: <350uVrms/2mVpp
Excellent line regulation and load regulation
Fast transient response time: <50μs
Some channels are isolated
Standard OVP/OCP/OTP protection functions
Standard timer output
Integrated V, A, W measurements and waveform display
Independent control for each channel
Supports advanced functions: timer and delay output (standard), recorder/analyzer/monitor/trigger (standard in models with "A" and optional in other models)
3.5-inch TFT display
Various interfaces: USB Host & Device (standard), USB-GPIB (optional), LAN/RS232/Digital IO (standard in models with "A" and optional in other models)

model	Output voltage	Output current	Bench/Rack	Interfaces
DP811	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP811A	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP821	Ch 1: 0V – 60V Ch 2: 0V – 8V Ch 3: N/A	Ch 1: 1A Ch 2: 10A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP821A	Ch 1: 0V – 60V Ch 2: 0V – 8V Ch 3: N/A	Ch 1: 1A Ch 2: 10A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP831	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP831A	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP832	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP832A	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)

High-accuracy built-in V, A, W measurements (0.1 mA and 0.1 mV) and waveform display (1 mA and 1 mV) (HIRES-DP800)
Output delay, analysis, monitoring and preset functions (AFK-DP800)
RS-232 and LAN interfaces (INTERFACE-DP800)
Digital I/O (DIGITALIO-DP800)

Availability In stock
Manufacturer Rigol
Product path Home Power Supplies Laboratory Power Supplies Rigol DP832 POWER SUPPLY 195W 2x 0-30V/3A, 0-5V/3A
SKU RGDP832
Attributes
- Voltage class 30V
- Power Class 3A
- Power class 200W
- Channels 3
- Product family Rigol DP800
- Manufacturer's model DP832
- Click for more details https://eu.rigol.com/products/DP_detail/DP800.html
- Factory delivery time 3 weeks
- Instructions for use English; Finnish available on request (PDF)
- Extended warranty 3 years
