Rigol DP831A POWER SUPPLY 160W 1-CH/2-CH 0-8V/5A, 0-30V/2A, 0-(-)30V/2A

Name: Rigol DP831A POWER SUPPLY 160W 1-CH/2-CH 0-8V/5A, 0-30V/2A, 0-(-)30V/2A
Brand: Rigol
SKU: RGDP831A
Price: 741.70 EUR
Availability: InStock

Temporarily out of stock

SKU#: RGDP831A

Rigol DP831A POWER SUPPLY 160W 1-CH/2-CH 0-8V/5A, 0-30V/2A, 0-(-)30V/2A

Temporarily out of stock

SKU#: RGDP831A

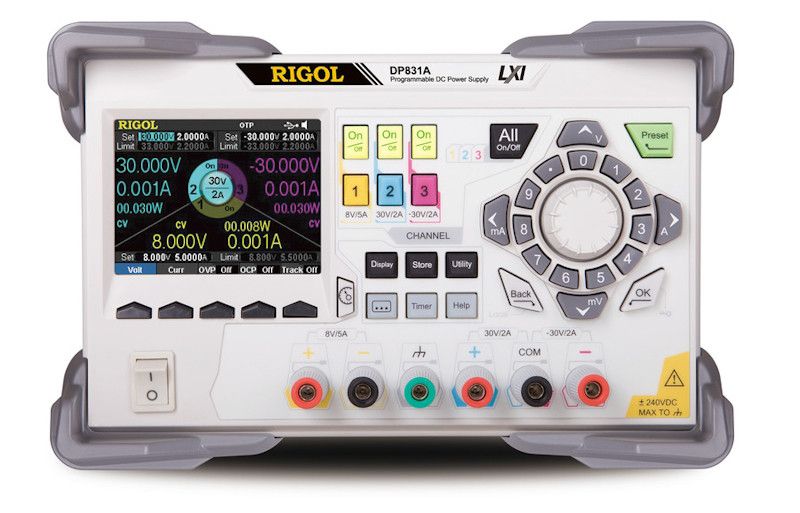

Rigol DP831A - three-channel, programmable linear power supply with adjustable 1-CH/2-CH 0-8V/5A, 0-30V/2A and 0-(-)30V/2A. Comprehensive options included as standard.

741,70 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

DP831A: 3 outputs, 8V/5A || 30V/2A || -30V/2A, total power up to 160W
Low ripple and noise: <350µVrms/2mVpp
Excellent line regulation and load regulation
Fast transient response time: <50µs
Some channels are isolated
Standard OVP/OCP/OTP protection functions
Standard timer output
Integrated V, A, W measurements and waveform display
Independent control for each channel
Supports advanced features: timer and delayed output (standard), recorder/analyzer/tracking/trigger (standard on models with "A" and optional on other models)
3.5-inch TFT display
Various interfaces: USB Host & Device (standard), USB-GPIB (optional), LAN/RS232/Digital I/O (standard on models with "A" and optional on other models)

Rigol DP800 DC Power Supply Comparison Table

model	Output voltage	Output current	Bench/Cabinet	Control
DP811	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP811A	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP821	Ch 1: 0V – 60V Ch 2: 0V – 8V Ch 3: N/A	Ch 1: 1A Ch 2: 10A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP821A	Ch 1: 0V – 60V Ch 2: 0V – 8V Ch 3: N/A	Ch 1: 1A Ch 2: 10A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP831	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP831A	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP832	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP832A	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)

Rigol DP831A default options included

Accurate built-in V, A, W measurements (0.1 mA and 0.1 mV) and waveform display (1 mA and 1 mV) (HIRES-DP800)
Output delay, analysis, tracking and preset functions (AFK-DP800)
RS-232 and LAN interfaces (INTERFACE-DP800)
Digital I/O (DIGITALIO-DP800)

Package contents

DP831A linear laboratory power supply
Power cord
Test leads
USB cable

Manuals

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Power Supplies Laboratory Power Supplies Rigol DP831A POWER SUPPLY 160W 1-CH/2-CH 0-8V/5A, 0-30V/2A, 0-(-)30V/2A
SKU RGDP831A
Attributes
- Power class 160W
- Product family Rigol DP800
- Manufacturer's model DP831A
- Click for more details https://int.rigol.com/products/DP_detail/DP800
- Factory delivery time 3 weeks
