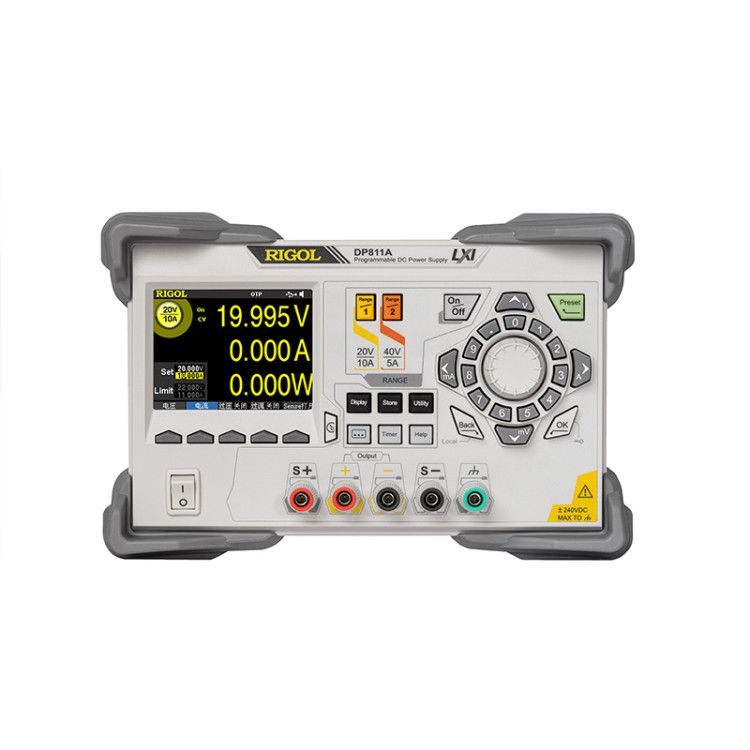

Rigol DP811A POWER SUPPLY 200W 20V/10A, 40V/5A

Name: Rigol DP811A POWER SUPPLY 200W 20V/10A, 40V/5A
Brand: Rigol
SKU: RGDP811A
Price: 852.15 EUR
Availability: InStock

Temporarily out of stock

SKU#: RGDP811A

Temporarily out of stock

SKU#: RGDP811A

Rigol DP811A - 200W power supply with adjustable outputs max 20V/10A and 40V/5A

852,15 €

Temporarily out of stock in the online store

Add a comment about the product

Product Description

DP811A: 2 outputs, 0V/–20V / 0V/–40V, 10A / 5A, total power up to 200W
Low ripple and noise: <350µVrms/2mVpp
Excellent line regulation and load regulation speed
Fast transient response time: <50µs
Some channels are isolated
Standard OVP/OCP/OTP protection functions
Standard timer output
Integrated V, A, W measurements and waveform display
Independent control for each channel
Supports advanced features: timer and delayed output (standard), recorder/analyzer/monitor/trigger (standard on models with "A" and optional on other models)
3.5-inch TFT display
Various interfaces: USB Host & Device (standard), USB-GPIB (optional), LAN/RS232/Digital IO (standard on models with "A" and optional on other models)

model	Output voltage	Output current	Bench/Rack	Interfaces
DP811	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP811A	Ch 1: 0V – 20V / 0V – 40V Ch 2: N/A Ch 3: N/A	Ch 1: 10A / 5A Ch 2: N/A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP821	Ch 1: 0V – 60V Ch 2: 0V – 8V Ch 3: N/A	Ch 1: 1A Ch 2: 10A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP821A	Ch 1: 0V – 60V Ch 2: 0V – 8V Ch 3: N/A	Ch 1: 1A Ch 2: 10A Ch 3: N/A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP831	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP831A	Ch 1: 0V – 8V Ch 2: 0V – 30V Ch 3: 0V – (-)30V	Ch 1: 5A Ch 2: 2A Ch 3: 2A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP832	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP832A	Ch 1: 0V – 30V Ch 2: 0V – 30V Ch 3: 0V – 5V	Ch 1: 3A Ch 2: 3A Ch 3: 3A	Bench / Rack (Opt)	USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)

Precise built-in V, A, W measurements (0.1 mA and 0.1 mV) and waveform display (1 mA and 1 mV) (HIRES-DP800)
Output delay, analysis, monitor and preset functions (AFK-DP800)
RS-232 and LAN interfaces (INTERFACE-DP800)
Digital I/O (DIGITALIO-DP800)

Availability Temporarily out of stock in the online store
Manufacturer Rigol
Product path Home Power Supplies Laboratory Power Supplies Rigol DP811A POWER SUPPLY 200W 20V/10A, 40V/5A
SKU RGDP811A
Attributes
- Voltage class 40V
- Power Class 5A
- Power class 200W
- Channels 2
- Product family Rigol DP800
- Manufacturer's model DP811A
- Click for more details https://int.rigol.com/products/DP_detail/DP800
- Factory delivery time 3 weeks
- Instructions for use In English; Finnish available on request (PDF)
- Extended warranty 3 years
