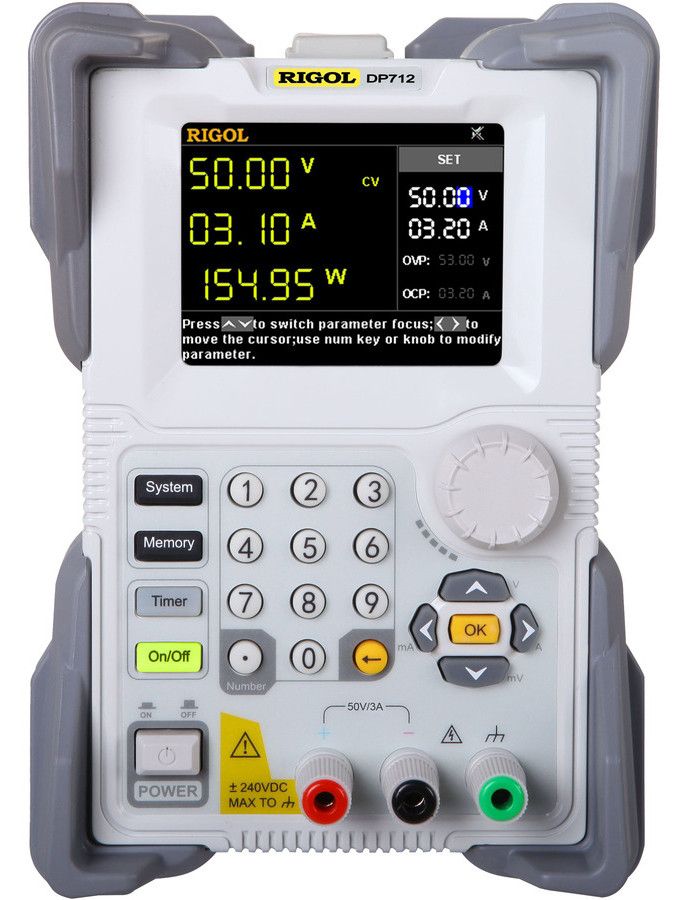

Rigol DP712 is a single-channel programmable linear DC power supply with excellent performance and a reasonable price.

Thanks to its linear design, the DP712’s output voltage is extremely clean - noise and ripple under 500uV RMS / 4mVpp and under 2mA RMS.

Equipped with over-voltage and over-current protection, the DP712 also responds very quickly to load changes - transient response time is under 50us.

The power supply can be remotely controlled via an RS232 serial port.

Optional features include a programmable timer function with 2048 steps, 1mV / 1mA resolution update, and a trigger mode that allows controlling multiple power supplies simultaneously.

Features

• Output voltage: 0-50V
• Resolution: 10mV / 10mA (upgradable to 1mV / 1mA)
• Output current: 0-3A
• Max. power: 150W
• Adjustable over-voltage and over-current protection 0.01V - 55V / 0.01A - 3.3A
• Load regulation accuracy: <0.01% + 2mV (Voltage), <0.01% + 2mA (Current)
• Voltage noise and ripple <500uV RMS / <4mV pp
• Current noise and ripple <2mA pp
• Transient response time: <50us
• Remote control via RS232 port

Included in delivery

• DP712
• Power cable
• 2.5A 250V fuse
• Quick start guide
