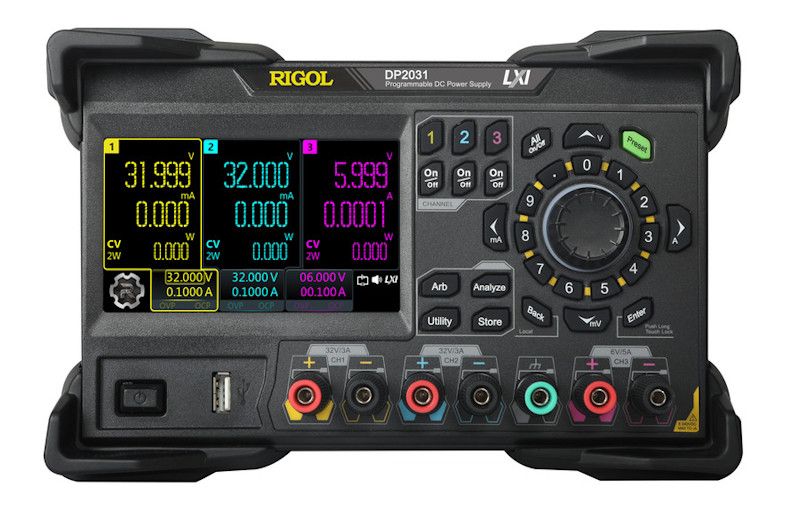

DP2031 is an advanced programmable linear DC power supply for a wide range of applications. The power supply’s advanced data acquisition features enable precise analysis of energy consumption, for example. Sampling rate up to 7.5kHz (with option).

Features

• 3 electrically isolated independent channels with a total power of up to 222 W
• 4.3-inch LCD color touchscreen
• 3 channels: 2x 0-32V / 3A, 1x 0-6V / 5A
• Four-wire measurement mode for channels 1 and 2
• Third channel upgradable to 10A
• Internal series/parallel connections for CH1 and CH2
• Excellent programming/reading accuracy
• Transient response time <50 μs
• Low output ripple and noise <350 μVrms/2 mVpp
• Command handling time <10 ms
• Three rack units (3U), half-rack form
• Software control
• Timed output, data logging and analysis
• Up to 512 random points with dwell time min. 1 ms
• Various built-in basic waveforms
• Overvoltage, overcurrent and overtemperature protection

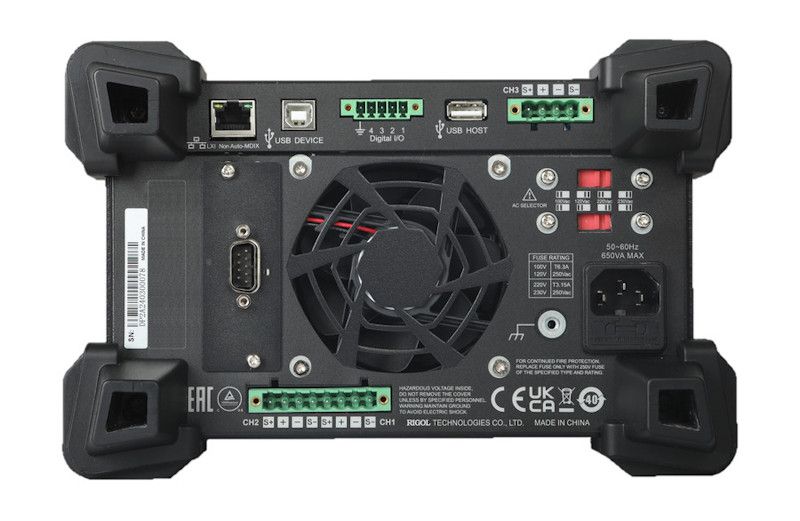

• Various interfaces available: USB, LAN and digital I/O

Package includes

• DP2031 linear laboratory power supply
• Power cord
• Test leads
• USB cable

Documentation

• DP2031 Datasheet
• DP2031 Quick Guide
• DP2031 User Guide
• DP2031 Programming Guide

Links

• Rigol DP2000 series (manufacturer's product pages)
