Features

• 5½ digit resolution (120,000 counts)
• Maximum measurement rate: 80 readings/s (DM858E)
• 7-inch color touchscreen (1024 × 600) with dual-display function
• Measurements: DCV, DCI, ACV, ACI, resistance (2-/4-wire), capacitance, frequency, diode, continuity, temperature (TC: B, E, J, K, N, R, S, T; RTD: 385, 389, 391, 392)
• True-RMS AC voltage and current measurement
• Memory: 20,000 measurement points
• 10 history and setting storage groups, supports external USB storage
• Mathematical and graphical functions: dBm, dB, relative, statistics, limits, histogram, bar and trend charts

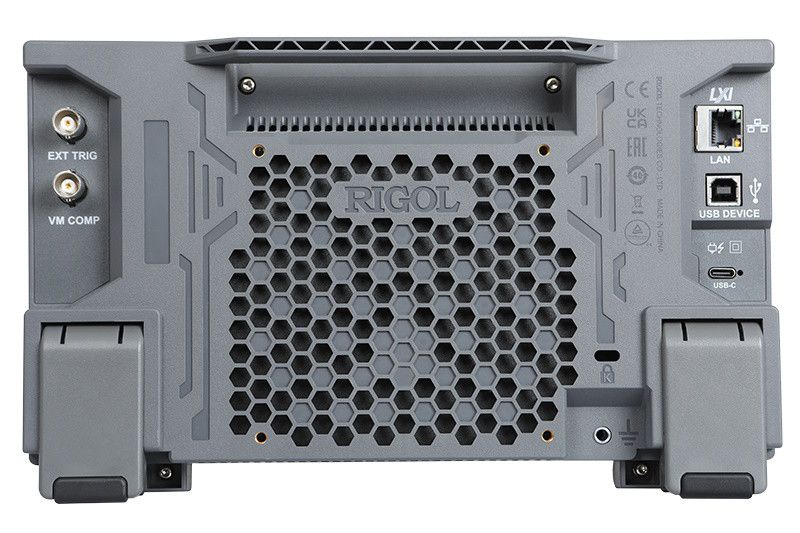

• Interfaces: USB Host (front), USB Device and LAN (rear), Web Control, SCPI support
• Power connector: Type-C (12 V, 3 A), consumption max. 10 W
• Compact size: 266 × 165 × 80 mm, weight < 2 kg, VESA 100×100 mount

Comparison table

Included in delivery

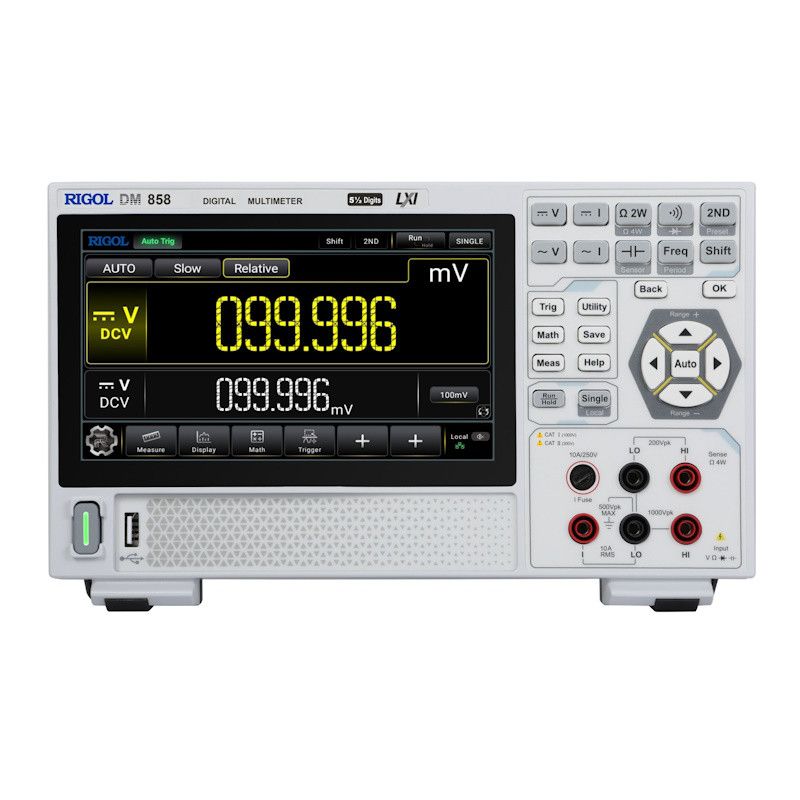

• DM858E digital multimeter
• Power adapter (Type-C)
• Two test leads (red and black)
• Two alligator clip connectors (red and black)
• Two spare fuses (F3 A / 250 V)
• USB cable (150 cm)

Links

• DM858 Quick Guide
• DM858 Programming Guide
• DM858 Datasheet
